Turn signal and hazard warning system

INSPECTION

1. INSPECT TURN SIGNAL SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

If continuity is not as specified, replace the switch.

2. INSPECT HAZARD WARNING SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

If continuity is not as specified, replace the switch.

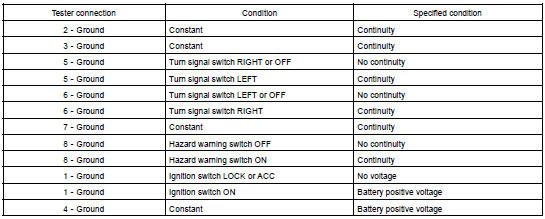

3. INSPECT TURN SIGNAL FLASHER CIRCUIT

Disconnect the connector from the combination switch and inspect

Disconnect the connector from the combination switch and inspect the connector on the wire harness side, as shown.

If circuit is as specified, replace the relay.

If circuit is as specified, replace the relay.

If circuit is not as specified, inspect the circuits connected to other parts.

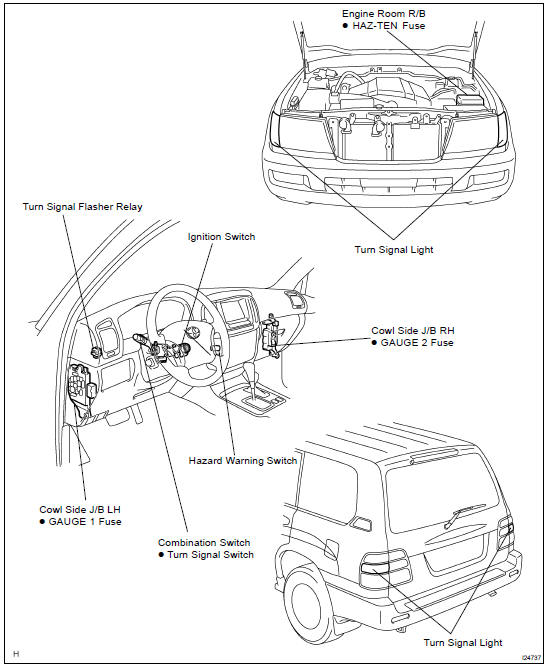

LOCATION
