Ignition switch and key unlock warning switch

INSPECTION

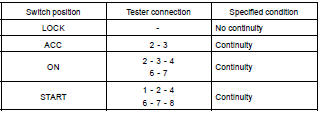

1. INSPECT IGNITION SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

If continuity is not as specified, replace the switch.

2. INSPECT IGNITION KEY ILLUMINATION OPERATION

Connect the positive (+) lead from the battery to terminal 1 and

Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the indicator light lights up.

If operation is not as specified, replace the switch.

3. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

If continuity is not as specified, replace the switch.

Connect the switch connector and inspect the connector on wire harness side from the back side, as shown.

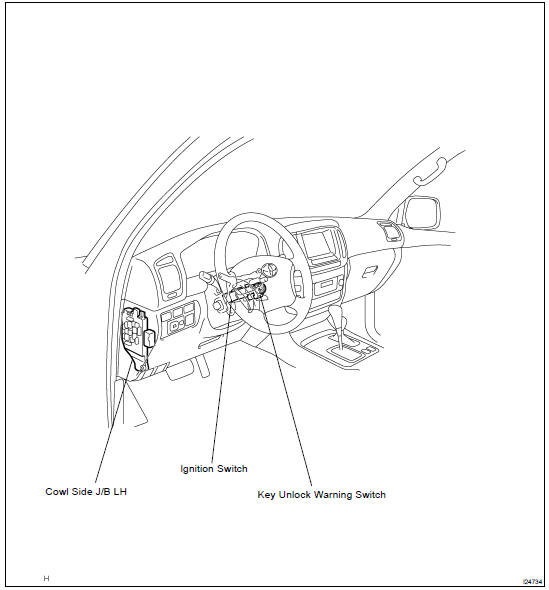

LOCATION

Multi display
