Toyota
Toyota Land Cruiser
 Service Manual
Body Electrical
Overhead junction block

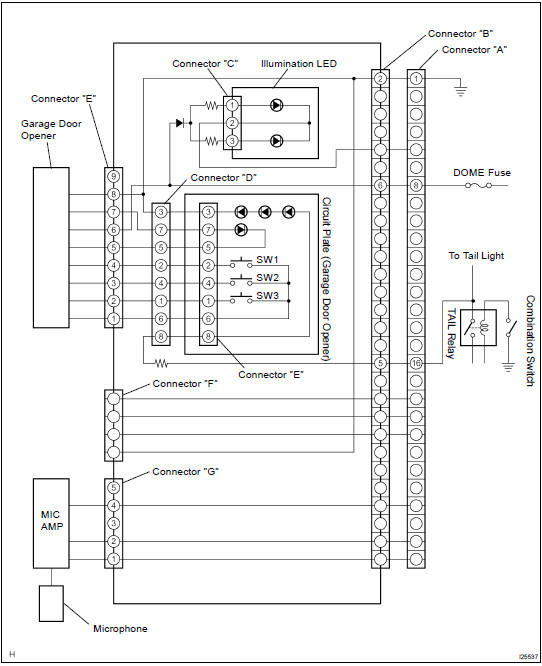

CIRCUIT

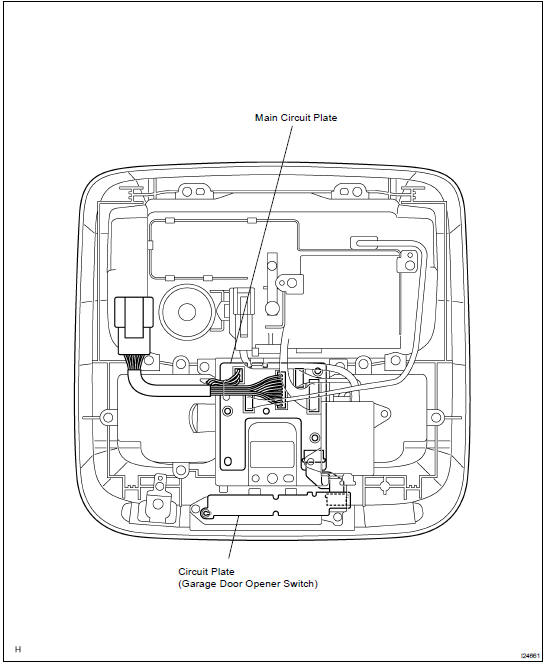

COMPONENTS

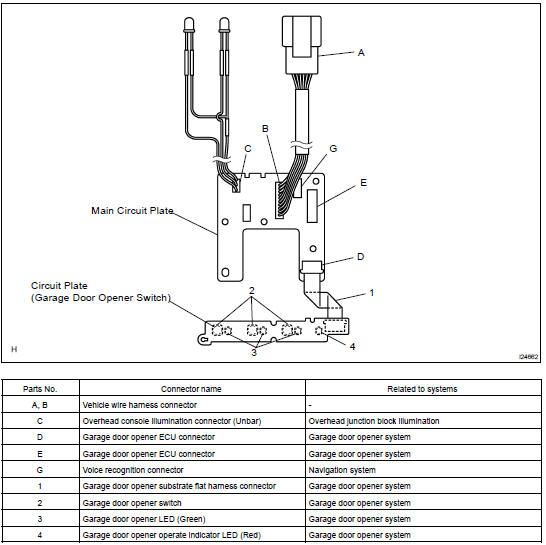

COMPONENTS

INSPECTION

INSPECTION

1. INSPECT OVERHEAD JUNCTION BLOCK ASSEMBLY

Disconnect the connector from the overhead J/B and inspect

Disconnect the connector from the overhead J/B and inspect the connector on the wire harness side, as shown.

If continuity is not as specified, repair or replace the wire harness.

If continuity is not as specified, repair or replace the wire harness.

2. Overhead J/B side: INSPECT OVERHEAD JUNCTION BLOCK ASSEMBLY

If continuity is not as specified, replace the overhead J/B assembly.

If continuity is not as specified, replace the overhead J/B assembly.

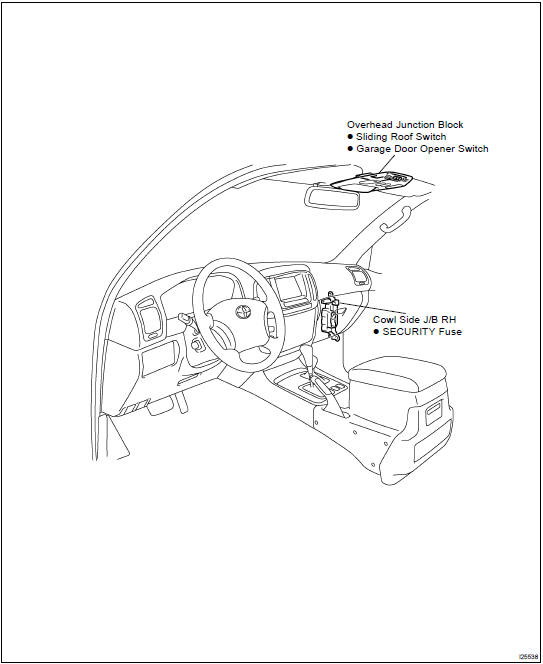

LOCATION

Power door lock control system
