Toyota
Toyota Land Cruiser
 Service Manual
Body Electrical
Stop light system

INSPECTION

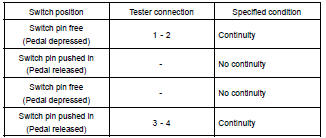

1. INSPECT STOP LIGHT SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

If continuity is not as specified, replace the switch.

2. INSPECT HI-MOUNTED STOP LIGHT CONTINUITY

Using an ohmmeter, check that continuity exists between terminals.

Using an ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly.

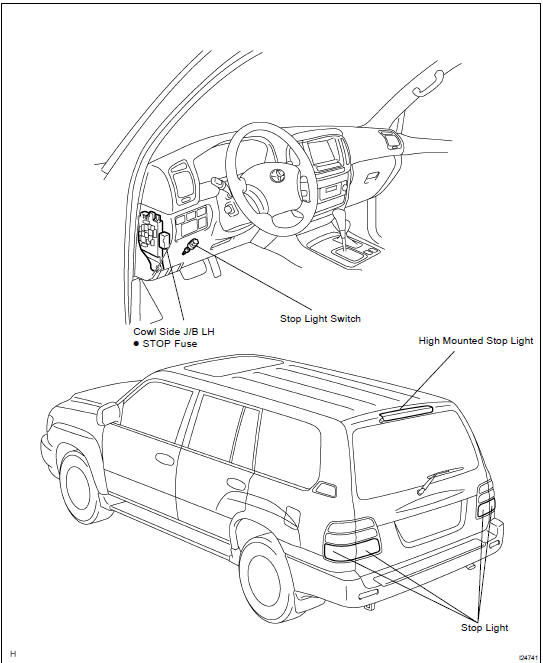

LOCATION
