Multi display

TROUBLESHOOTING

HINT:

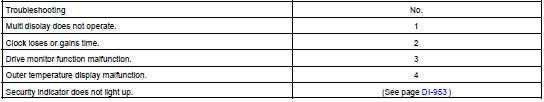

  • Troubleshoot the Multi Display according to the table below.
  • w/ Navigation System (DI-1 151)

+- 1.5 seconds / day

+- 1.5 seconds / day

1. TROUBLESHOOTING NO.1

1 MULTI DISPLAY DOES NOT OPERATE

(a) Check that the battery positive voltage is 10 - 16 V.

(a) Check that the battery positive voltage is 10 - 16 V.

If voltage is not as specified, replace the battery.

(b) Check that the ECU-IG, ECU-B and ACC fuses are not blown.

If the fuse is blown, replace the fuse and check for short.

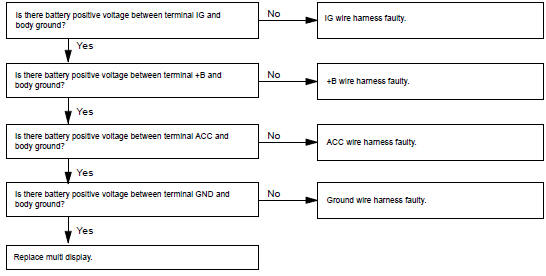

(c) Troubleshoot the multi display as follows.

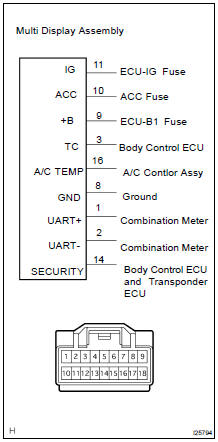

HINT: Inspect the connector on the wire harness side.

2. TROUBLESHOOTING NO.2

2. TROUBLESHOOTING NO.2

2 CLOCK LOSES OR GAINS TIME

(a) Check that the battery positive voltage is 10 - 16 V.

If voltage is not as specified, replace the battery.

(b) Inspect the error of the clock.

Allowable error (per day): +- 1.5 seconds If the error exceeds the allowable error, replace the multi display.

(c) Check that the clock adjusting button is sticking in position and has failed to return.

If the error exceeds the allowable error, replace the multi display.

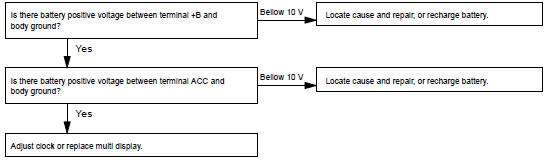

(d) Troubleshoot the clock as follows.

HINT: Inspect the connector on the wire harness side.

3. TROUBLESHOOTING NO.3

3. TROUBLESHOOTING NO.3

3 DRIVE MONITOR FUNCTION MALFUNCTION

(a) Check that the battery positive voltage is 10 - 16 V.

If voltage is not as specified, replace the battery.

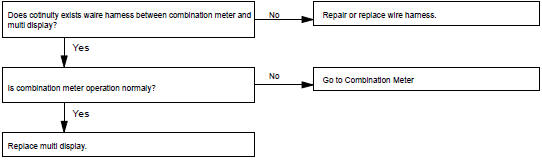

(b) Troubleshoot the drive monitor function as follows.

HINT: Inspect the connector on the wire harness side.

4. TROUBLESHOOTING NO.4

4. TROUBLESHOOTING NO.4

4 OUTER TEMPERATURE DISPLAY MALFUNCTION

(a) Check that the battery positive voltage is 10 - 16 V.

If voltage is not as specified, replace the battery.

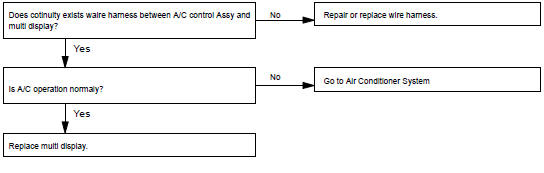

(b) Troubleshoot the outer temperature display as follows.

HINT: Inspect the connector on the wire harness side.

Overhead junction block
