Rear speed sensor

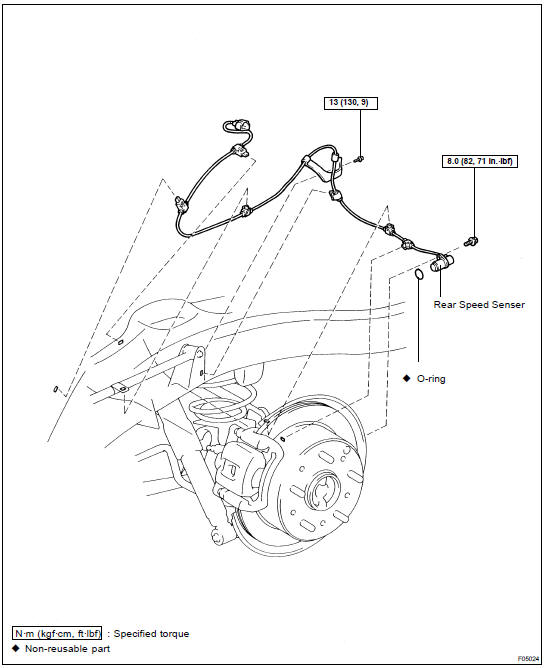

COMPONENTS

INSTALLATION

INSTALLATION

Installation is in the reverse order of removal ( BR-72 ).

HINT: After installation, check the speed sensor signal ( DI-505 ).

REMOVAL

REMOVE SPEED SENSOR

(a) Disconnect the speed sensor connector.

(a) Disconnect the speed sensor connector.

(b) Remove the clamp bolt from the upper control bracket.

Torque: 13 N·m (130 kgf·cm, 9 ft·lbf )

(c) Remove the 6 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.

(d) Remove the mounting bolt and speed sensor.

(d) Remove the mounting bolt and speed sensor.

Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

(e) Remove the O-ring from the speed sensoe.
