Quarter window glass

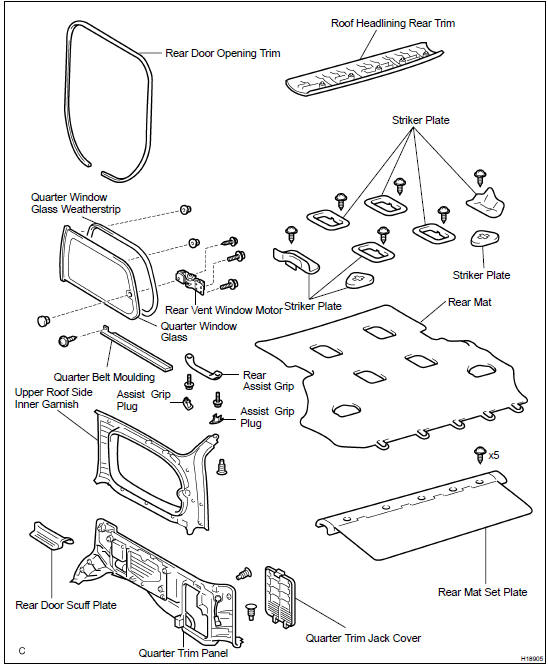

COMPONENTS

INSTALLATION

INSTALLATION

Installation is in the reverse order of removal

REMOVAL

1. REMOVE ROOF HEADLINING REAR TRIM

Using a screwdriver, remove the roof headlining rear trim.

Using a screwdriver, remove the roof headlining rear trim.

HINT: Tape up the screwdriver tip before use.

2. REMOVE REAR NO. 2 SEATS

3. REMOVE REAR MAT SET PLATE

(a) Remove the 5 screws.

(a) Remove the 5 screws.

(b) Using a screwdriver, remove the rear mat set plate.

HINT: Tape up the screwdriver tip before use.

4. REMOVE STRIKER PLATE

(a) Remove the 6 screws.

(a) Remove the 6 screws.

(b) Using a screwdriver, remove the striker plates.

HINT: Tape up the screwdriver tip before use.

5. REMOVE REAR MAT

6. REMOVE REAR NO. 2 SEAT OUTER BELT FLOOR ANCHOR

Torque:42 N·m (430 kgf·cm, 31 ft·lbf)

7. REMOVE REAR NO. 1 SEAT OUTER BELT FLOOR ANCHOR

Torque:42 N·m (430 kgf·cm, 31 ft·lbf)

8. REMOVE REAR DOOR SCUFF PLATE

9. REMOVE REAR DOOR OPENING TRIM

10. REMOVE QUARTER TRIM PANEL

(a) Remove the quarter trim jack cover.

(a) Remove the quarter trim jack cover.

(b) Using a clip remover, remove the 2 clips.

(c) Remove the quarter trim panel, then disconnect the connector.

11. REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHOR

12. REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR

13. REMOVE UPPER ROOF SIDE INNER GARNISH

(a) Using a screwdriver, remove the assist grip plugs, then remove

(a) Using a screwdriver, remove the assist grip plugs, then remove the 2 screws and the rear assist grip.

HINT: Tape up the screwdriver tip before use.

(b) Using a clip remover, remove the clip.

(c) Using a screwdriver, remove the upper roof side inner garnish.

HINT: Tape the screwdriver tip before use.

14. REMOVE QUARTER WINDOW GLASS

(a) Disconnect the connector.

(a) Disconnect the connector.

(b) w/ Antenna: Disconnect the connector.

(c) Remove the 2 bolts, the 2 nuts and the quarter window glass.

15. REMOVE QUARTER WINDOW GLASS WEATHERSTRIP

16. REMOVE QUARTER BELT MOULDING

(a) Remove the screw.

(a) Remove the screw.

(b) Using a screwdriver, remove the quarter belt moulding.

HINT: Tape up the screwdriver tip before use.

17. REMOVE REAR VENT WINDOW MOTOR

Remove the screw and the rear vent window motor.

Remove the screw and the rear vent window motor.

18. REMOVE QUARTER WINDOW LOCK

Remove the screw and the quarter window lock.
