Maintenance and care Do-it-yourself maintenance
Light bulbs

You may replace the following bulbs yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer.

For more information about replacing other light bulbs, contact your Toyota dealer.

  •  Prepare a replacement light bulb

Check the wattage of the light bulb being replaced.

  •  Remove the engine compartment cover

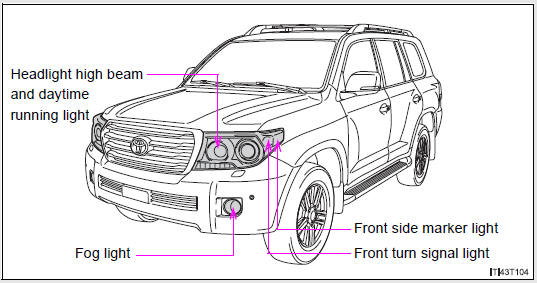

  •  Front bulb locations

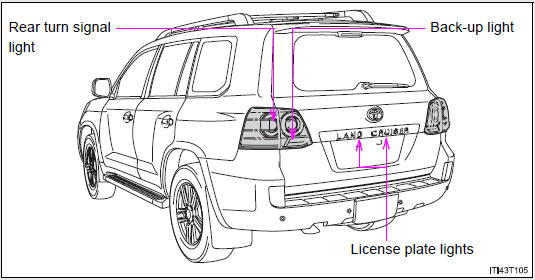

  • Rear bulb locations

Replacing light bulbs

Replacing light bulbs

  • Headlight high beam and daytime running light

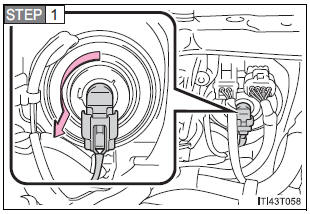

Turn the bulb base counterclockwise.

Turn the bulb base counterclockwise.

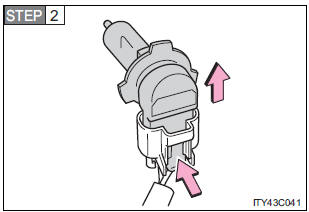

Unplug the connector while

Unplug the connector while depressing the lock release.

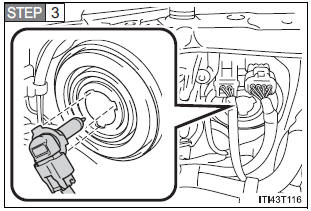

Replace the light bulb, and install

Replace the light bulb, and install the bulb base.

Align the 3 tabs on the light bulb with the mounting, and insert.

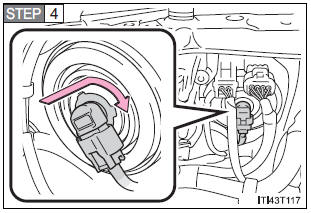

Turn and secure the bulb base.

Turn and secure the bulb base.

Shake the bulb base gently to check that it is not loose, turn the headlights on once and visually confirm that no light is leaking through the mounting.

  • Fog light

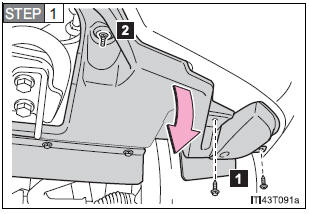

Remove the fender liner bolts,

Remove the fender liner bolts, loose the fender liner nut and pull down the fender liner.

  1. Fender liner bolts
  2. Fender liner nut

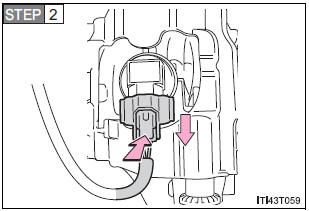

Unplug the connector while

Unplug the connector while depressing the lock release.

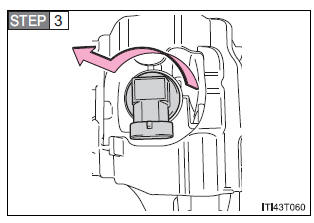

Turn the light bulb counterclockwise.

Turn the light bulb counterclockwise.

Replace the light bulb.

Replace the light bulb.

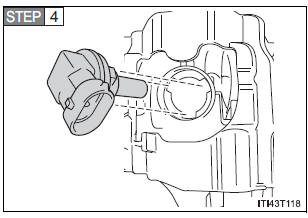

Align the 3 tabs on the light bulb with the mounting, and insert.

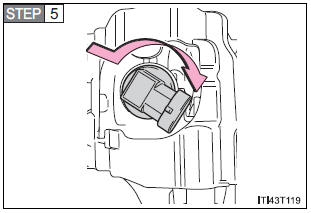

Turn and secure the light bulb

Turn and secure the light bulb

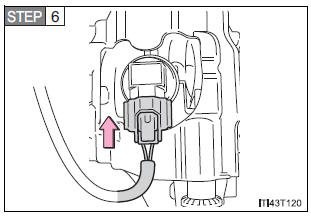

Install the bulb base.

Install the bulb base.

Shake the bulb base gently to check that it is not loose, turn the fog lights on once and visually confirm that no light is leaking through the mounting

STEP 7

When installing the fender liner, conduct STEP 1

in reverse.

  • Front turn signal light

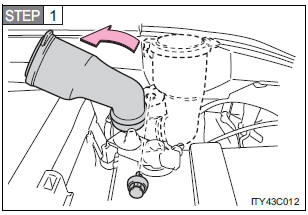

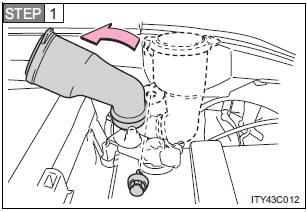

For the left side only: Remove

For the left side only: Remove the securing bolt and move the washer fluid filler opening.

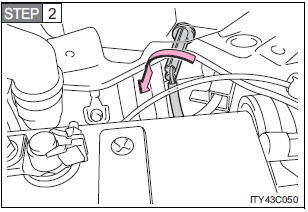

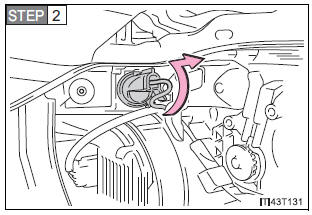

Turn the bulb base counterclockwise.

Turn the bulb base counterclockwise.

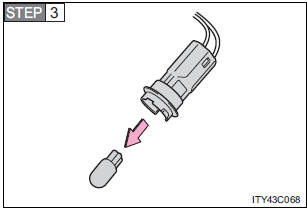

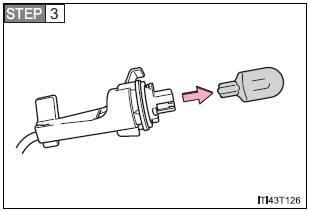

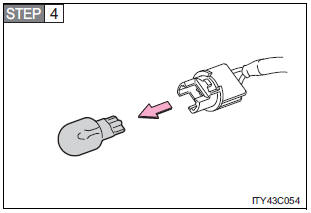

Remove the light bulb.

Remove the light bulb.

STEP 4

When installing, reverse the steps listed.

  • Front side marker light

For the left side only: Remove

For the left side only: Remove the securing bolt and move the washer fluid filler opening.

Turn the bulb base counterclockwise.

Turn the bulb base counterclockwise.

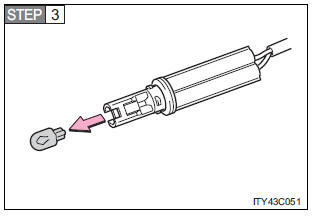

Remove the light bulb.

Remove the light bulb.

STEP 4

When installing, reverse the steps listed.

  • Back-up light

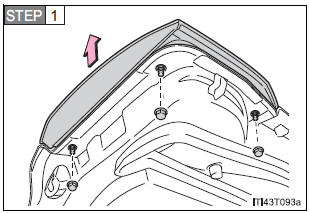

Open the back door and remove

Open the back door and remove the nuts and lamp assembly.

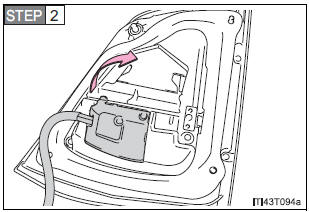

Remove the cover.

Remove the cover.

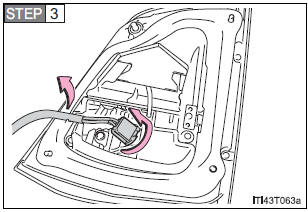

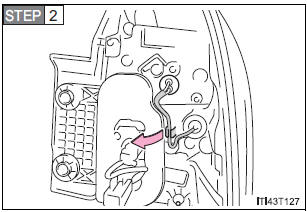

Unclip the connector wire and

Unclip the connector wire and turn the bulb bases counterclockwise.

Remove the light bulb.

Remove the light bulb.

STEP 5

When installing, reverse the steps listed.

  • Rear turn signal light

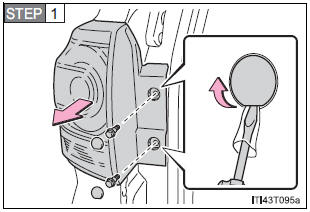

Open the back door and remove

Open the back door and remove the bolts and lamp assembly.

Use a cloth to prevent scratches.

Unclip the connector wire.

Unclip the connector wire.

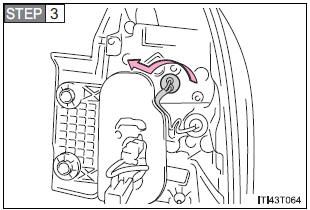

Turn the bulb bases counterclockwise.

Turn the bulb bases counterclockwise.

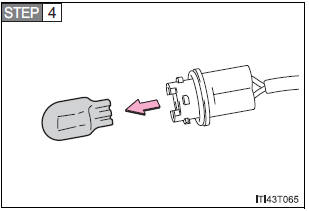

Remove the light bulb.

Remove the light bulb.

STEP 5

When installing, reverse the steps listed.

  • License plate light

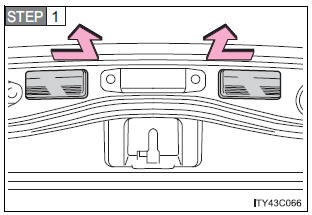

Open the back door and remove

Open the back door and remove the license plate light unit.

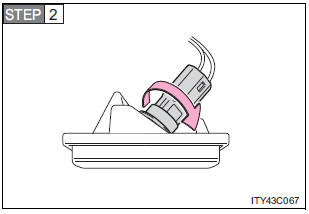

Turn the bulb base counterclockwise.

Turn the bulb base counterclockwise.

Remove the light bulb

Remove the light bulb

STEP 4

When installing, reverse the steps listed.

  • Bulbs other than the above

If any of the bulbs listed below has burnt out, have your Toyota dealer replace it.

  •  Headlight low beam
  •  Parking light
  •  Side turn signal light
  •  Stop/tail lights
  •  Tail lights
  •  High mounted stoplight
  •  Rear side marker lights
  • Discharge headlights

If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go out temporarily. The discharge bulbs will come on when normal power is restored.

  • Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not indicate a malfunction. Contact your Toyota dealer for more information in the following situations:

  • Large drops of water are built up on the inside of the lens.
  • Water has built up inside the headlight.
  • LED lights

The parking light, side turn signal light, stop/tail lights, tail lights, high mounted stoplight and rear side marker lights consist of a number of LEDs. If any LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced.

CAUTION

  • Replacing light bulbs

  • Turn off the headlights. Do not attempt to replace the bulb immediately after turning off the headlights.

    The bulbs become very hot and may cause burns.

  • Do not touch the glass portion of the light bulb with bare hands. When it is unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid getting moisture and oils on the bulb.

    Also, if the bulb is scratched or dropped, it may blow out or crack.

  • Fully install light bulbs and any parts used to secure them. Failing to do so may result in heat damage, fire, or water entering the headlight unit. This may damage the headlights or cause condensation to build up on the lens.

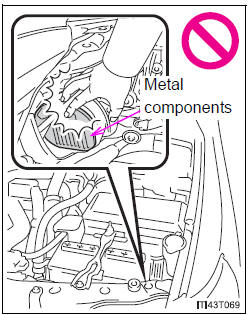

  • While the low beam headlights are turned on, and for a short time after they have been turned off, metal components at the rear of the headlight assembly will be extremely hot.

    To prevent burns, do not touch these metal components until you are certain they have cooled down.



CAUTION

  • Discharge headlights

  • Contact your Toyota dealer before replacing high-intensity discharge headlights (including light bulbs).
  • Do not touch the high-intensity discharge headlights high voltage socket when the headlights are turned on.

    An extremely high voltage of 30000 V will be discharged and could result in serious injury or death by electric shock.

  • Do not attempt to take apart or repair the low beam discharge headlight bulbs, connectors, power supply circuits, or related components.

    Doing so could result in electric shock and serious injury or death.

  • To prevent damage or fire

Make sure bulbs are fully seated and locked.
