Maintenance and care Ľ Do-it-yourself maintenance
Checking and replacing fuses

If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary.

STEP 1

Turn the ďENGINE START STOPĒ switch OFF.

STEP 2

Open the fuse box cover.

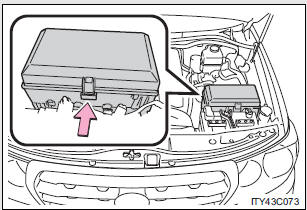

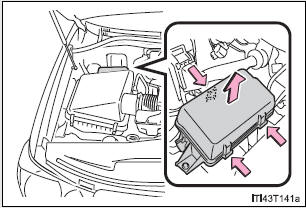

  • Engine compartment (fuse box on the left side)

Push the tab in and lift the lid

Push the tab in and lift the lid off.

  • Engine compartment (fuse box on the right side)

Push the tabs in and lift the lid

Push the tabs in and lift the lid off.

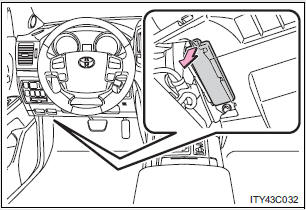

  • Driverís side instrument panel

Remove the lid.

Remove the lid.

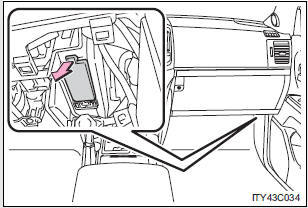

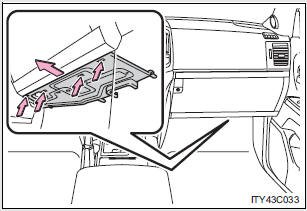

  • Passengerís side instrument panel

Remove the cover.

Remove the cover.

Remove the lid.

Remove the lid.

STEP 3

After a system failure, see ďFuse layout and amperage ratingsĒ  for details about which fuse to check.

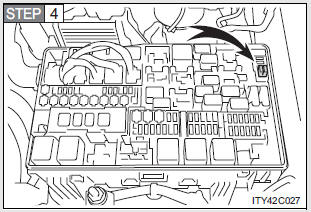

Remove the fuse with the pullout

Remove the fuse with the pullout tool.

STEP 5

Check if the fuse has blown.

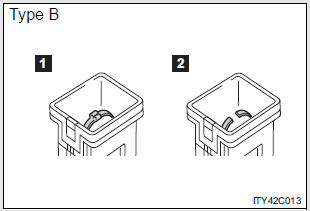

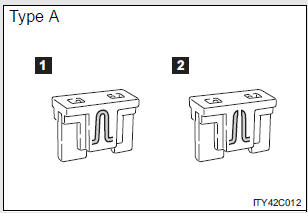

  • Type A and B

  1. Normal fuse
  2. Blown fuse

Replace it with one of an appropriate amperage rating.

The amperage rating can be found on the fuse box lid.

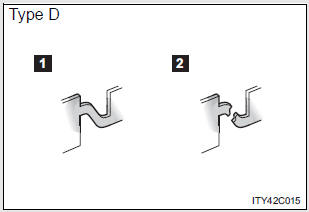

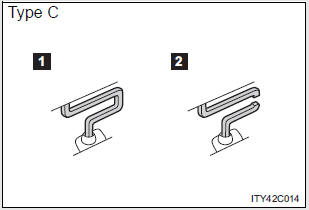

  • Type C and D

  1. Normal fuse
  2. Blown fuse

Contact your Toyota dealer.

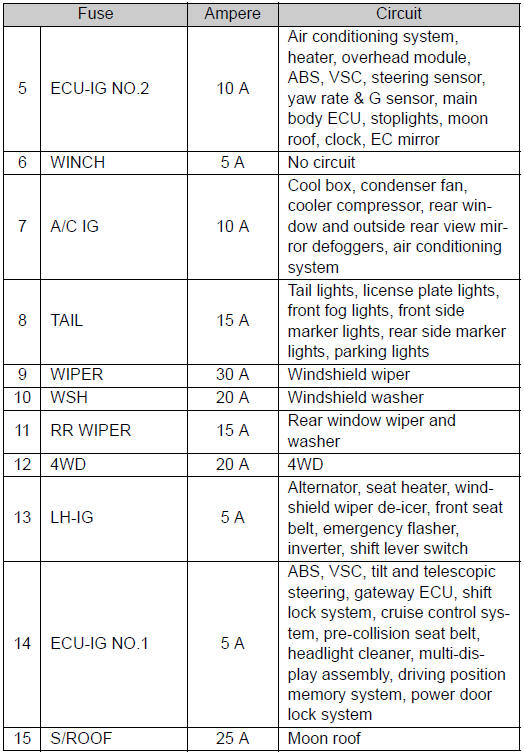

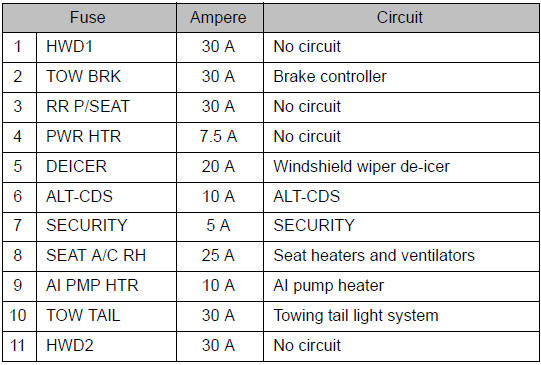

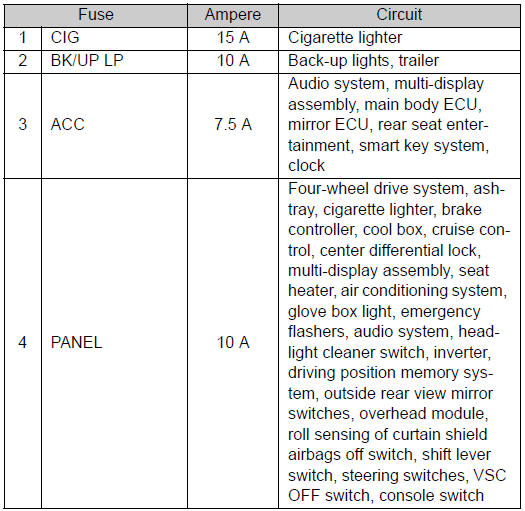

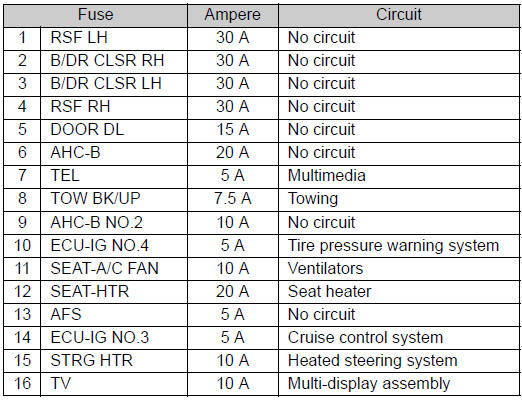

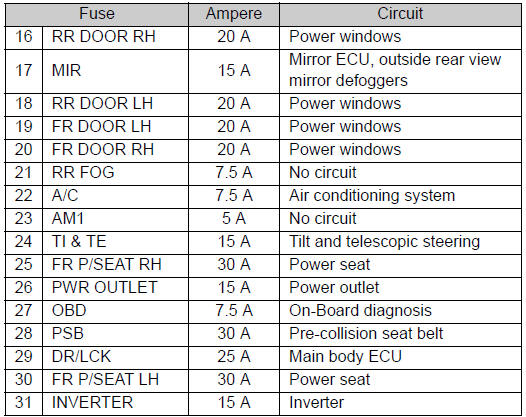

Fuse layout and amperage ratings

Fuse layout and amperage ratings

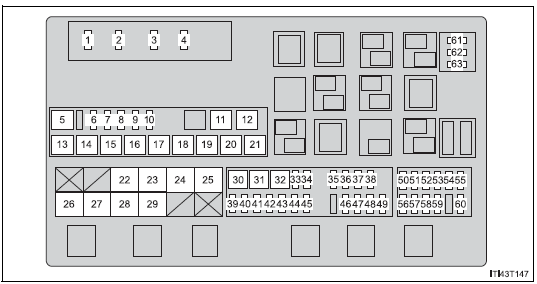

  • Engine compartment (fuse box on the left side)

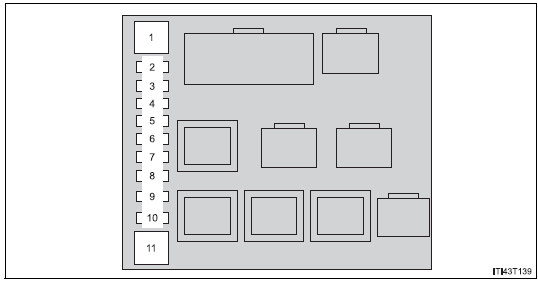

  • Engine compartment (fuse box on the right side)

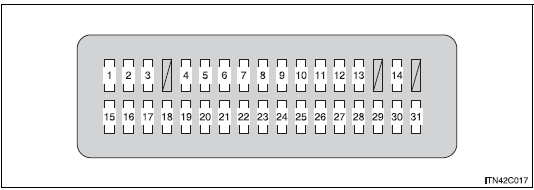

  • Driverís side instrument panel

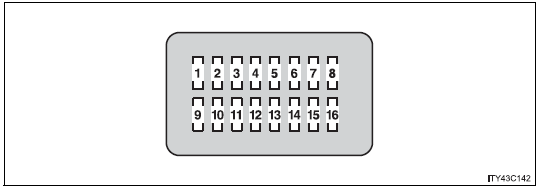

  • Passengerís side instrument panel

  • After a fuse is replaced

  • If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement.
  • If the replaced fuse blows again, have the vehicle inspected by your Toyota dealer.
  • If there is an overload in the circuits

The fuses are designed to blow, protecting the wiring harness from damage.

CAUTION

  • To prevent system breakdowns and vehicle fire

Observe the following precautions.

Failing to do so may cause damage to the vehicle, and possibly a fire or injury.

  • Never use a fuse of a higher amperage rating than indicated, or use any other object in place of a fuse.
  • Always use a genuine Toyota fuse or equivalent.

    Never replace a fuse with a wire, even as a temporary fix.

  • Do not modify fuses or the fuse box.



NOTICE

  • Before replacing fuses

Have the cause of electrical overload determined and repaired by your Toyota dealer.
