Suspension & Axle
Rear lateral control rod

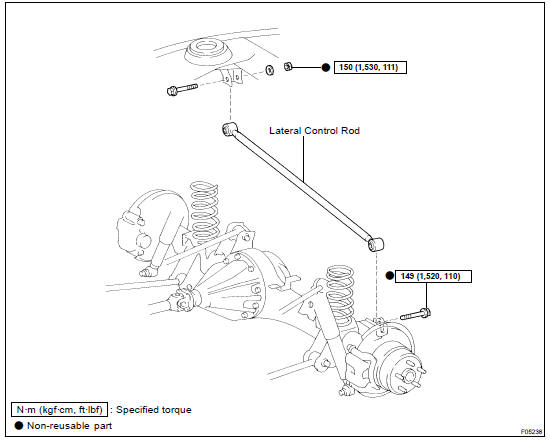

COMPONENTS

INSTALLATION

INSTALLATION

Installation is in the reverse order of removal (SA-179 ).

REMOVAL

1. SUPPORT REAR AXLE HOUSING WITH JACK

2. REMOVE LATERAL CONTROL ROD

Remove the 2 bolts, nut, washer and lateral control rod.

Remove the 2 bolts, nut, washer and lateral control rod.

Torque: A: 149 N·m (1,520 kgf·cm, 110 ft·lbf) B: 150 N·m (1,530 kgf·cm, 111 ft·lbf)

HINT: At the time of installation, after stabilizing the suspension, torque the nut and bolt.
