Suspension & Axle
Front differential side gear shaft oil seal

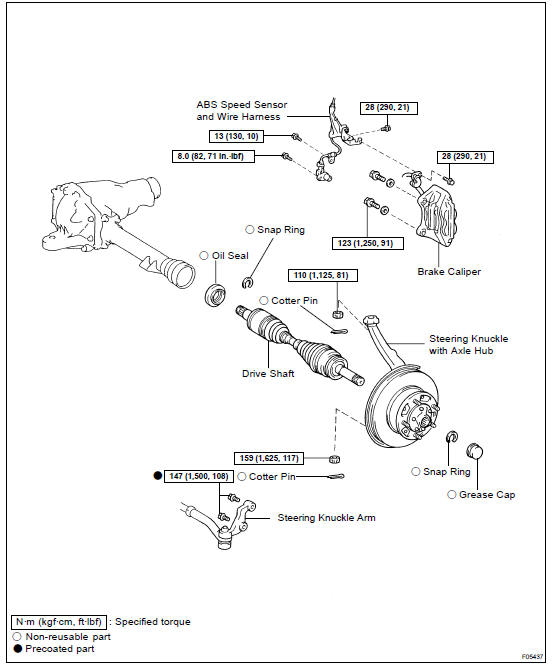

COMPONENTS

REPLACEMENT

REPLACEMENT

1. REMOVE FRONT WHEELS

Torque: 131 N·m (1,340 kgf·cm, 97 ft·lbf)

2. REMOVE FRONT DRIVE SHAFT (SA-26 )

3. REPLACE OIL SEAL

(a) Using SST, remove the oil seal.

(a) Using SST, remove the oil seal.

SST 09308-00010

(b) Coat the hypoid gear oil to a new oil seal periphery.

(c) Using SST and a hammer, install the new oil seal.

(c) Using SST and a hammer, install the new oil seal.

SST 09550-00032, 09950-70010 (09951-07100)

(d) Coat the MP grease to the oil seal lip.

4. INSTALL FRONT DRIVE SHAFT (SA-33 )

5. FILL DIFFERENTIAL WITH HYPOID GEAR OIL

Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

Torque: 49 N·m (500 kgf·cm, 36 ft·lbf) Oil type: Hypoid gear oil API GL-5

Recommended oil viscosity: Above -18C (0F) SAE 90 Below -18C (0F) SAE 80W-90 or 80W Capacity: 1.70 liters (1.80 US qts, 1.50 lmp.qts)
