Automatic Transmission

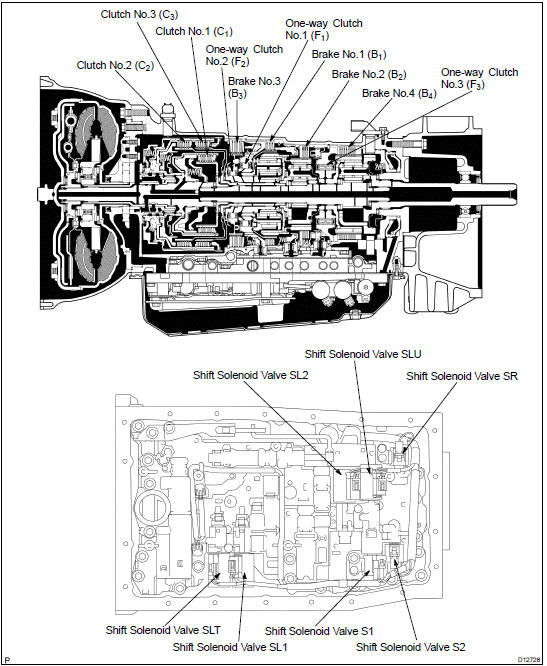

Automatic transmission system

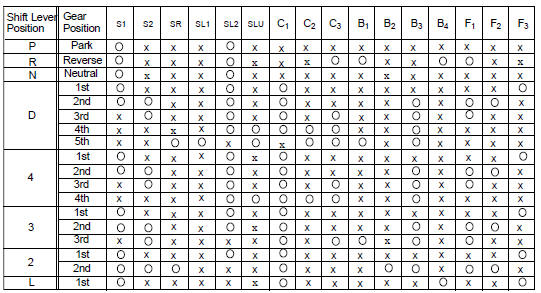

Operation

: Operating

F1, F2, F3 : Operate only when driving: Operating F1, F2, F3 : Operate only when driving

Automatic transmission fluid

OPERATION

1. BEFORE TRANSMISSION FILL

  • This transmission requires Toyota Genuine ATF WS.
  • It is necessary to refill the transmission with the correct amount of fluid.
  • The vehicle must remain level while adjusting the transmission fluid level.
  • On vehicles equipped with active suspension, turn the suspension control switch OFF if it is necessary to jack up the vehicle with the engine running.

2. TRANSMISSION PAN FILL

(a) Remove the refill plug and overflow plug.

(a) Remove the refill plug and overflow plug.

(b) Fill the transmission through the refill hole until fluid begins

(b) Fill the transmission through the refill hole until fluid begins to trickle out of the overflow tube.

(c) Reinstall the overflow plug.

3. TRANSMISSION FILL

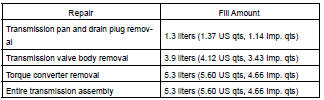

(a) Fill the transmission with the correct amount of fluid as listed in the table below.

(b) Reinstall the refill plug to avoid fluid splash.

HINT:

HINT: If you cannot add the listed amount of fluid, do the following:

  1.  Install the refill plug.
  2.  Allow the engine to idle with air conditioning OFF.
  3.  Move the shift lever through entire gear range to circulate fluid.
  4.  Wait for 30 seconds with the engine idling.
  5.  Stop the engine.
  6.  Remove the refill plug and add fluid.
  7.  Reinstall the refill plug.

4. FLUID CIRCULATION

(a) Allow the engine to idle with the air conditioning OFF.

(b) Move the shift lever through entire gear range to circulate fluid.

5. FLUID TEMPERATURE CHECK

NOTICE:

NOTICE: The fluid temperature should be less than 30 C (86 F) before beginning the fluid temperature check.

(a) With hand-held tester

  1.  Connect the hand-held tester to the DLC3.
  2. Select the tester menus: OBD/MOBD, ENGINE, DATA LIST and A/T.
  3.  Check A/T OIL TEMP.
  4.  Allow the engine to idle until the fluid temperature reaches 46 C (115 F).

(b) Without hand-held tester (Using A/T OIL TEMP indicator)

  1.  Connect terminals between CG (4) and TC (13) of the DLC3 using SST (09843-18040).
  2.  Move the shift lever back and forth between N and D at 1.5 seconds interval for six seconds.
  3.  The D shift indicator on the combination meter comes on for two seconds. This indicates that the fluid temperature check mode has been started.
  4.  The D shift indicator comes on again when the fluid temperature reaches 46 C (115 F) and blinks when it exceeds 56 C (130 F).
  5.  Allow the engine to idle until the fluid temperature reaches 46 C (115 F).

6. FLUID LEVEL CHECK

NOTICE:

NOTICE: The fluid temperature must be between 46 C (115 F) and 56 C (130 F) to check the fluid level.

(a) Remove the overflow plug with the engine idling.

(b) Check that the fluid comes out of the overflow tube.

If fluid does not come out, proceed to step 7.

If fluid comes out, wait until the overflow slows to a trickle and proceed to step 8.

7. TRANSMISSION REFILL

(a) Install the overflow plug.

(b) Stop the engine.

(c) Remove the refill plug.

(d) Add 0.4 liters (0.42 US qts, 0.35 lmp. qts) of fluid.

(e) Allow the engine to idle and wait for 10 seconds.

(f) Proceed to step 6.

8. COMPLETE

(a) Install the overflow plug with a new gasket.

(b) Stop the engine.

(c) Install the refill plug with a new gasket.

Torque:
20 NVm (205 kgfVcm, 15 ftVlbf) for overflow plug 39 NVm (400 kgfVcm, 29 ftVlbf) for refill plug

PRECAUTION

If the vehicle is equipped with a mobile communication system, refer to the precautions in the IN section.
