Toyota Land Cruiser

 Service Manual

Ignition
Crankshaft position sensor

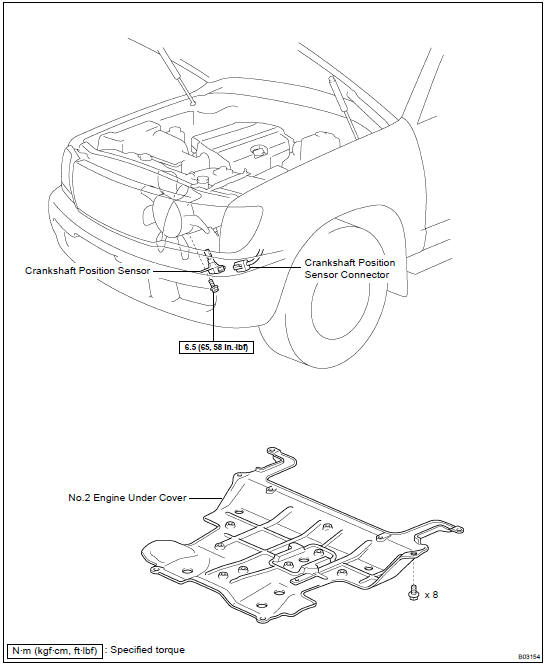

COMPONENTS

INSTALLATION

Installation is in the reverse order of removal

REMOVAL

1. REMOVE NO.2 ENGINE UNDER COVER

2. REMOVE CRANKSHAFT POSITION SENSOR

(a) Disconnect the crankshaft position sensor connector.

(b) Remove the bolt and crankshaft position sensor.

Torque: 6.5 N·m (65 kgf·cm, 58 in.·lbf)
