VSV for canister closed valve (CCV)

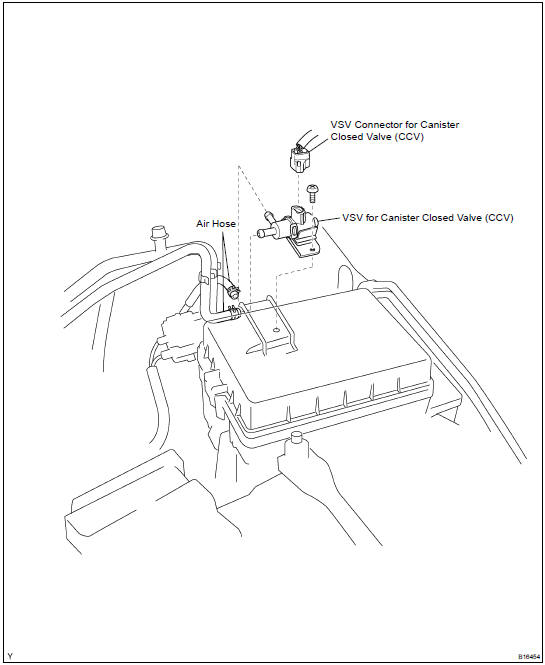

COMPONENTS

INSPECTION

INSPECTION

1. REMOVE VSV

2. INSPECT VSV FOR OPEN CIRCUIT

Using an ohmmeter, check that there is a continuity between

Using an ohmmeter, check that there is a continuity between the terminals.

Resistance: 24 - 30 W at 20C (68F)

If there is no continuity, replace VSV.

3. INSPECT VSV FOR GROUND

Using an ohmmeter, check that there is no continuity between

Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is a continuity, replace VSV.

4. INSPECT VSV OPERATION

(a) Check that air flows from the ports A to B.

(a) Check that air flows from the ports A to B.

(b) Apply the battery positive voltage across the terminals.

(b) Apply the battery positive voltage across the terminals.

(c) Check that air does not flow from the ports A to B.

If operation is not as specified, replace VSV.

5. REINSTALL VSV
