Interior features » Using the Bluetooth® audio system
Using the hands-free system

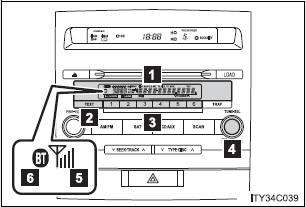

  • Audio unit

  1. Display

A message, name, phone number, etc. is displayed.

Lower-case characters and special characters cannot be displayed.

  1. Displays information that is too long to be displayed at one time on the display (press and hold)
  2. Selects speed dials
  3. Selects items such as menu and number

Turn: Selects an item Press: Inputs the selected item

  1. Reception level
  2. Bluetooth® connection condition

If “BT” is not displayed, the hands-free system cannot be used.

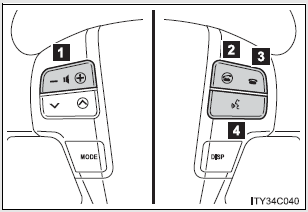

  • Steering wheel

  1. Volume

The voice guidance volume cannot be adjusted by using this button.

  1. Off-hook switch

Turns the hands-free system on/start a call

  1. On-hook switch

Turns the hands-free system off/ends a call/refuse a call

  1. Talk switch

Turns the voice command system on (press)/turns the voice command system off (press and hold)

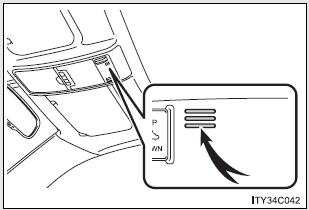

  • Microphone

Operating the system by using a voice command

Operating the system by using a voice command

By following voice guidance instructions output from the speaker, voice commands enable to the operation of the hands-free system without need to check the display or operate .

  •  Operation procedure when using a voice command

Press the talk switch and follow voice guidance instructions.

  •  Auxiliary commands when using a voice command

The following auxiliary commands can be used: Cancel: Exits the hands-free system Repeat: Repeats the previous voice guidance instruction Go back: Returns to the previous procedure Help: Reads aloud the function summary if a help comment is registered for the selected function

Using the hands-free system for the first time

Before using the hands-free system, it is necessary to register a cellular phone in the system. The system will enter phone registration mode automatically when starting the system with no cellular phone registered. Follow the procedure below to register (pair) a cellular phone:

STEP 1

Press the off-hook switch or the talk switch.

The introductory guidance and phone name registration instructions are heard.

STEP 2

Select “Pair Phone” using a voice command or .

STEP 3

Register a phone name by either of the following methods.

  1.  Select “Record Name” using be registered., and say the name to be registered.
  2.  Press the talk switch and say the name to be registered.

A voice guidance instruction to confirm the input is heard.

STEP 4

Select “Confirm” using a voice command or .

A passkey is displayed and heard, and a voice guidance instruction for inputting the passkey into the cellular phone is heard.

STEP 5

Input the passkey into the cellular phone.

Refer to the manual that comes with the cellular phone for the operation of the phone.

Guidance for registration completion is heard.

If the cellular phone has a Bluetooth® audio player, the audio player can be registered at the same time. A voice guidance instruction to register a Bluetooth® audio player is heard.

STEP 6

Select “Yes” or “No” using a voice command or .

(Bluetooth® audio player )

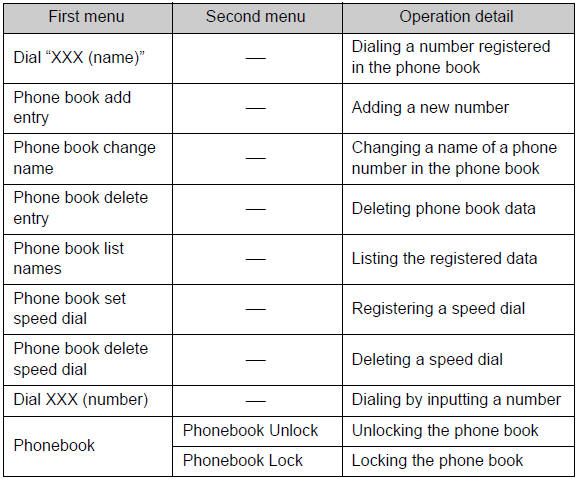

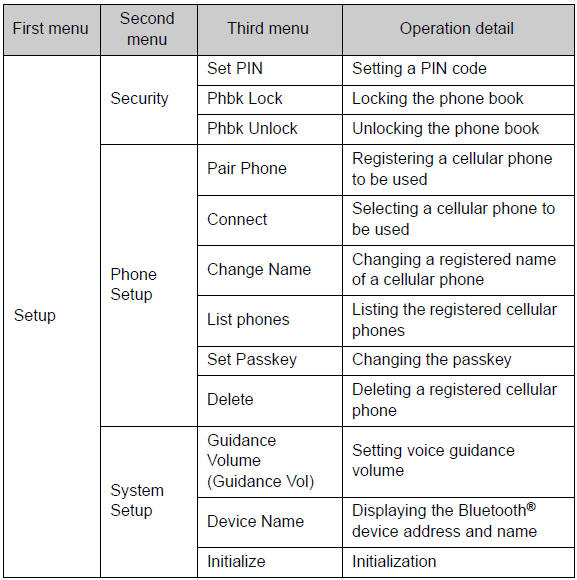

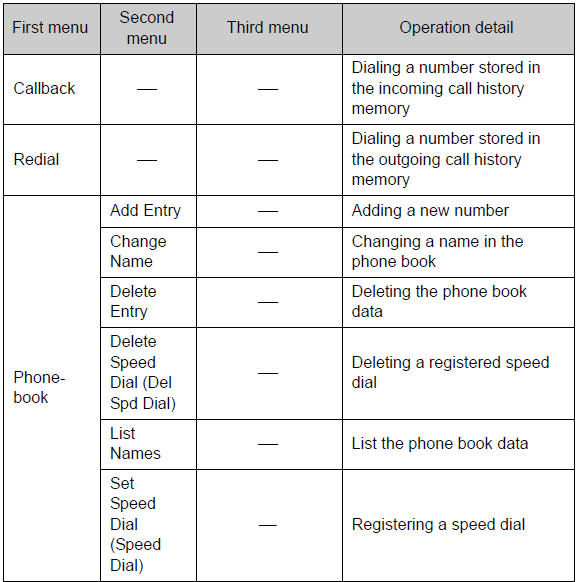

Menu list of the hands-free system

  • Normal operation

  • Using a short cut key

Automatic volume adjustment

Automatic volume adjustment When vehicle speed reaches 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less.

  • When using a voice command

  • For numbers, say a combination of single digits from zero to nine, # (pound), * (star), and + (plus).
  • Say a command correctly and clearly.
  • Situations that the system may not recognize your voice

  • When driving on a rough road
  • When driving at high speeds
  • When air is blowing out of the vents onto the microphone
  • When the air conditioning fan emits a loud noise
  • Operations that cannot be performed while driving

  • Operating the system with Registering a cellular phone to the system
  • Registering a cellular phone to the system
  • Changing the passkey
