Transfer
Troubleshooting

PROBLEM SYMPTOMS TABLE

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

Symptom

Suspect Area

Noise 6. Oil (Level low) 7. Oil (Wrong)
8. Transfer faulty
Oil leakage 1. Oil (Level too high) 2. Gasket (Damaged)
3. Oil seal (Worn or damaged) 4. O-ring (Worn or damaged)
Transfer corner braking Center differential or transfer faulty

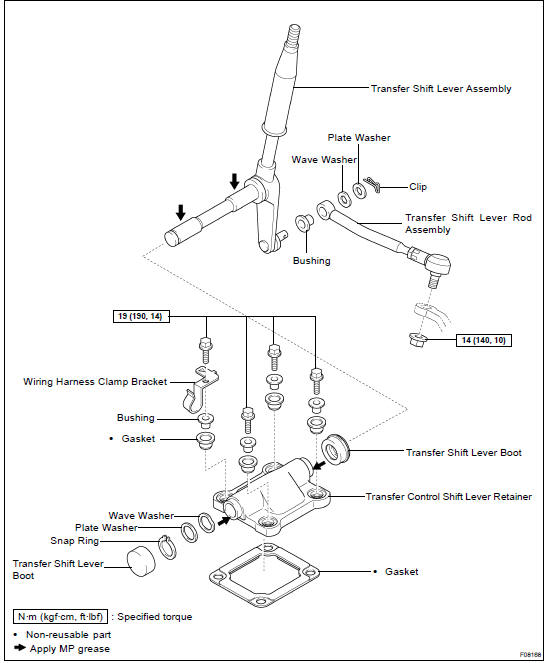

TRANSFER SHIFT LEVER ASSEMBLY

COMPONENTS
