Service specifications
Standard bolt

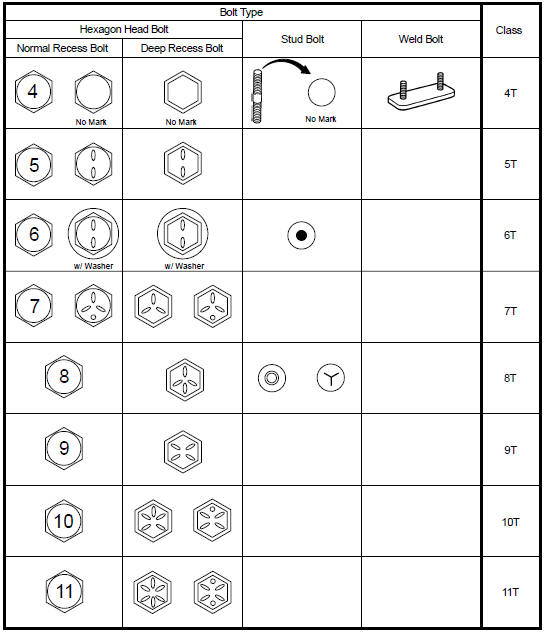

HOW TO DETERMINE BOLT STRENGTH

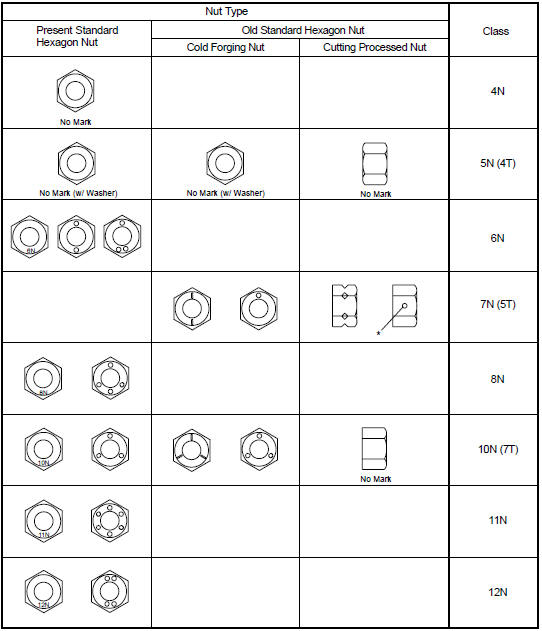

HOW TO DETERMINE NUT STRENGTH

HOW TO DETERMINE NUT STRENGTH

*: Nut with 1 or more marks on one side surface of the nut.

*: Nut with 1 or more marks on one side surface of the nut.

HINT: Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example: Bolt = 4T
Nut = 4N or more

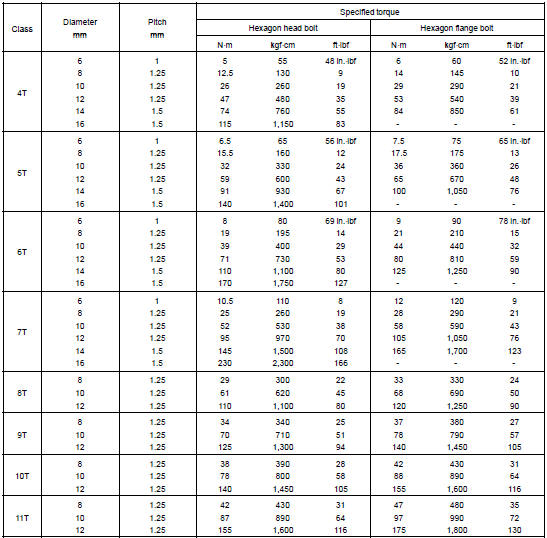

SPECIFIED TORQUE FOR STANDARD BOLTS

Transfer
