Before driving Opening, closing and locking the doors
Side doors

The vehicle can be locked and unlocked using the smart key system, wireless remote control or door lock switch.

  •  Entry function

  •  Wireless remote control

  •  Door lock switch

  1. Locks all doors
  2. Unlocks all doors

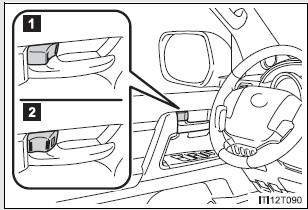

  • Inside lock button

  1. Locks the door
  2. Unlocks the door

The front doors can be opened by pulling the inside handles even if the lock buttons are in the lock position.

Locking the drivers door from the outside without a key

STEP 1

Move the inside lock button to the lock position.

STEP 2

Close the door.

The door cannot be locked if the ENGINE START STOP switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.

Depending on the position of the electronic key, the key may not be detected correctly and the door may be locked.

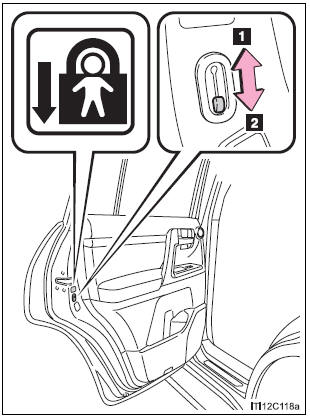

Rear door child-protector lock

The door cannot be opened from

The door cannot be opened from inside the vehicle when the locks are set.

  1. Unlock
  2. Lock

These locks can be set to prevent children from opening the rear doors. Press down rear door switches to lock the rear doors.

Automatic door locking and unlocking systems

The following functions can be set or canceled:

Function

Operation

Shift position linked door locking function Shifting the shift lever out of P locks all doors
Shift position linked door unlocking function Shifting the shift lever to P unlocks all doors.
Speed linked door locking function All doors are locked when the vehicle speed is approximately 12 mph (20 km/h) or higher.
Drivers door linked door unlocking function All doors are unlocked when the drivers door is opened within 45 seconds after turning the ENGINE START STOP switch OFF.
  • Setting and canceling the functions

To switch between setting and canceling, follow the procedure below:

STEP 1

Close all the doors and turn the ENGINE START STOP switch to IGNITION ON mode. (Perform step 2 within 20 seconds.)

Shift the shift lever to P or N,

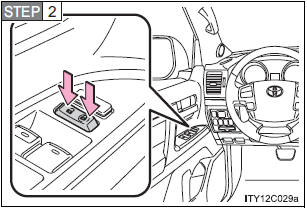

Shift the shift lever to P or N, press and hold the drivers door lock switch ( ) for or 5 seconds then release.) for 5 seconds then release.

The shift lever and switch positions corresponding to the desired function to be set are shown as follows.

Use the same procedure to cancel the function.

Function

Shift lever position

Drivers door lock switch position

Shift position linked door locking function P
Shift position linked door unlocking function
Speed linked door locking function N
Drivers door linked door unlocking function

When the setting or canceling operation is complete, all doors are locked and then unlocked.

  • Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are unlocked.

Depending on the force of the impact or the type of accident, however, the system may not operate.

  • Using the mechanical key

The doors can also be locked and unlocked with the mechanical key.

  • Customization

Settings (e.g. unlocking function using a key) can be changed.

(Customizable features )

CAUTION

  • To prevent an accident

Observe the following precautions while driving the vehicle.

Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.

  • Always use a seat belt.
  • Always lock all doors.
  • Ensure that all doors are properly closed.
  • Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehicle and it may result in serious injury or death.

Be especially careful of the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

  • Set the rear door child-protector locks when children are seated in the rear seat.
