Transfer Input shaft
Reassembly

HINT: Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL FRONT BALL BEARING

(a) Using SST and a press, install a new front ball bearing.

(a) Using SST and a press, install a new front ball bearing.

SST 09316-6001 1 (09316-00011)

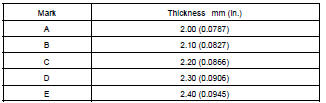

(b) Select a snap ring that will allow the minimum axial play.

(b) Select a snap ring that will allow the minimum axial play.

(c) Using a snap ring expander, install a new snap ring.

(c) Using a snap ring expander, install a new snap ring.

2. INSTALL REAR BALL BEARING

(a) Using SST and a press, install the rear ball bearing.

(a) Using SST and a press, install the rear ball bearing.

SST 09316-6001 1 (09316-00011, 09316-00031)

(b) Select a snap ring that will allow the minimum axial play

(b) Select a snap ring that will allow the minimum axial play

(c) Using a snap ring expander, install a new snap ring.

(c) Using a snap ring expander, install a new snap ring.
