Before driving Adjustable components (seats, mirrors, steering wheel)
Rear seats

  • Second seat

  1. Seatback angle adjustment lever
  2. Seat position adjustment lever
  • Third seat

Tumbling the second seats and third seat entry

Tumbling the second seats and third seat entry

For easy access to the third seat, perform STEP 1

in Tumbling the second seats.

  •  Before tumbling the second seats

Stow the seat belt buckles and

Stow the seat belt buckles and lower the head restraints to the lowest position.

Pass the outer seat belts through

Pass the outer seat belts through the seat belt hangers and secure the seat belt plates.

This prevents the shoulder belt from being damage.

Make sure that the seat belts are removed from the hangers before using them.

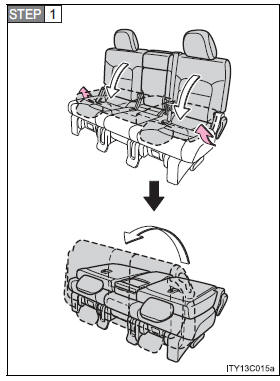

  • Tumbling the second seats

Fold down the seatback while

Fold down the seatback while pulling the seatback angle adjustment lever, and swing the whole seat up and forward.

Hook the holding strap to the

Hook the holding strap to the assist grip and secure the seat by pulling its free end.

When returning the second seat to its original position, stow the holding strap.

Remove the seat hook covers

Remove the seat hook covers from the back of the seat cushion, and install them on the seat hooks.

When returning the second seat to its original position, remove the seat hook covers from the floor and install them in the back of the seat cushion.

  • If you cannot raise the left side seatback

Lift the seatback until it stops.

Lift the seatback until it stops.

Lower the seatback a little then lift it

Lower the seatback a little then lift it again.

Folding up the third seats

  • Before folding up the third seats

Stow the seat belts buckles.

Stow the seat belts buckles.

STEP 2

Stow the center head restraint in the seatback.

Pass the outer seat belts through

Pass the outer seat belts through the seat belt hangers and secure the seat belt plates.

This prevents the shoulder belt from being damage.

Make sure that the seat belts are removed from the hangers before using them.

STEP 4

Stow the center seat belt tabs in the cover set in the roof.

  • Folding up the third seats

Fold down the head restraints

Fold down the head restraints while pulling the head restraint angle lever.

Push the seatback angle levers

Push the seatback angle levers and fold the third seatbacks.

Pull the seat leg lock release

Pull the seat leg lock release levers.

The seat will rise, and the seatback striker will also automatically sit up.

Before raising, make sure that the handle on the rear of the seatback is secure.

Secure the seats by the strikers.

Secure the seats by the strikers.

Remove the seat hook covers

Remove the seat hook covers from the back of the seat cushion, and install them on the seat hooks.

  • Returning the third seats

Remove the seat hook covers

Remove the seat hook covers from the floor and install them into the back of the seat cushion.

Unlock the seats by pulling the

Unlock the seats by pulling the stowed seat lock release levers and lower the seats to its original position.

Secure the seats by the strikers.

Secure the seats by the strikers.

Pull the handle and raise the

Pull the handle and raise the seatbacks.

Fix the handle securely in its original position after use

Raise the head restraints.

Raise the head restraints.

CAUTION

  • Seat adjustment

Do not recline the seat more than necessary when the vehicle is in motion, to reduce the risk of sliding under the lap belt.

If the seat is too reclined, during an accident the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury.

  • When the seatback is folded

  • Do not sit on or place anything on the seatback while driving.
  • Be sure to install the seat hook covers on the seat hooks, or you may get burned when they become hot.
  • When returning the seatbacks to their original position

Observe the following precautions. Failure to do so may result in death or serious injury.

  • Be careful not to get your hands or feet pinched in the seat.
  • Make sure the seats are securely locked. Failure to do so will prevent the seat belt from operating properly.
  • Check that the seat belts are not twisted or caught under the seat.
  • Arrange the seat belts in the proper positions for ready use.
  • Avoiding damage to seat components

Do not hang or attach anything on the seatback striker.



NOTICE

  • Before tumbling, folding up the seats

The seat belts and buckles must be stowed.

  • After returning the third seat

Make sure that the handle on the rear of the seatback has been secured.
