Interior features Using the air conditioning system and defogger

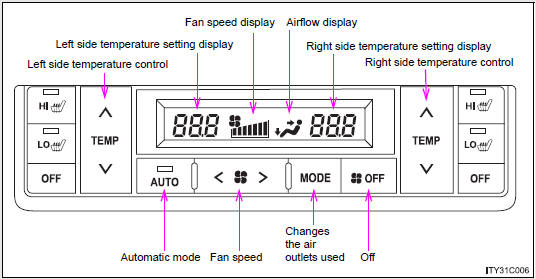

Rear air conditioning system

Airflow and outlets are automatically adjusted according to the temperature setting.

Using the automatic mode

Using the automatic mode

STEP 1

Press .

The air conditioning system will begin to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting.

STEP 2

Press ∧ to increase the temperature and ∨ to decrease the temperature on .

The temperature for the right-hand and left-hand rear seats can be set separately.

Adjusting the settings

  • Adjusting the temperature setting

Press ∧ to increase the temperature and ∨ to decrease the temperature on .

The temperature for the right-hand and left-hand rear seats can be set separately.

  •  Adjusting the fan speed

Press > (increase) or < (decrease) on .

The fan speed is shown on the display. (7 levels) Press to turn the fan off.

  • Changing the air outlets

Press .

The air outlets switch each time the button is pressed.

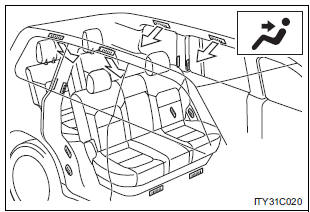

Air flows to the upper body.

Air flows to the upper body.

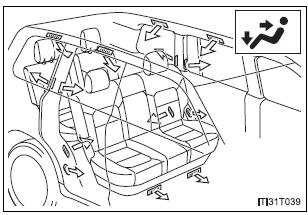

Air flows to the upper body and

Air flows to the upper body and feet.

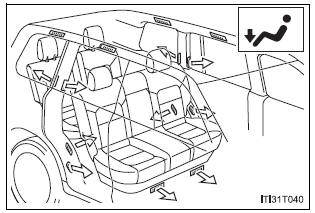

Air flows to the feet.

Air flows to the feet.

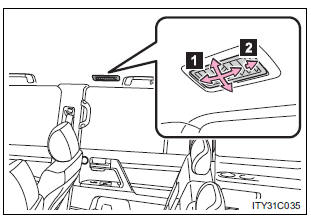

Adjusting the position and opening and closing the air outlets

  1. Direct air flow to the left or right, up or down.
  2. Turn the knob fully to the back of the vehicle to close the vent.
NOTICE

  • To prevent battery discharge

Do not leave the air co
