Vehicle specifications Specifications
Maintenance data (fuel, oil level, etc.)

Dimensions and weights

*1: Unladen vehicle

*1: Unladen vehicle
*2: Vehicles without roof rail and cross bar *3: Vehicles with roof rail and cross bar

Vehicle identification

  • Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

This number is stamped on the

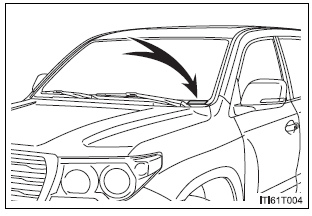

This number is stamped on the top left of the instrument panel.

This number is also on the Certification

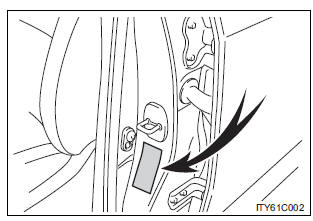

This number is also on the Certification Label.

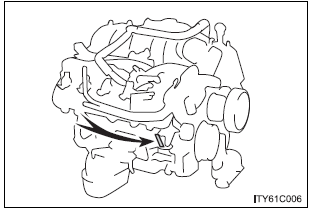

  • Engine number

The engine number is stamped

The engine number is stamped on the engine block as shown.

Engine

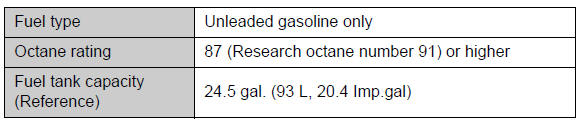

Fuel

Fuel

Lubrication system

Lubrication system

Oil capacity (Drain and refill reference*)

With filter Without filter

7.9 qt. (7.5 L, 6.6 Imp.qt.) 7.5 qt. (7.1 L, 6.2 Imp.qt.)

*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the dipstick.

  •  Engine oil selection

Toyota Genuine Motor Oil is used in your Toyota vehicle. Use Toyota approved Toyota Genuine Motor Oil or equivalent to satisfy the following grade and viscosity.

Oil grade: ILSAC GF-5 multigrade engine oil Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice for

SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather.

If SAE 0W-20 is not available, SAE 5W-20 oil may be used.

However, it must be replaced with SAE 0W-20 at the next oil change.

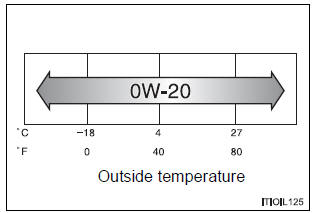

Oil viscosity (0W-20 is explained here as an example):

  •  The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather.
  •  The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher value) may be better suited if the vehicle is operated at high speeds, or under extreme load conditions.

How to read oil container label:

The International Lubricant Specification Advisory Committee (ILSAC) Certification Mark is added to some oil containers to help you select the oil you should use.

Cooling system

Cooling system

Capacity

17.6 qt. (16.7 L, 14.7 Imp.qt.)
Coolant type

Use either of the following:
  •  Toyota Super Long Life Coolant
  •  Similar high-quality ethylene glycolbased non-silicate, non-amine, nonnitrite, and non-borate coolant with long-life hybrid organic acid technology

Do not use plain water alone.

Ignition system

Spark plug Make Gap

DENSO SK20HR11 0.043 in. (1.1 mm)



NOTICE

  • Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

Electrical system

Battery


Open voltage at 68F (20C):

12.6 - 12.8 V Fully charged 12.2 - 12.4 V Half charged 11.8 - 12.0 V Discharged

(Voltage is checked 20 minutes after the key is removed with all lights turned off.)

Charging rates

5 A max.

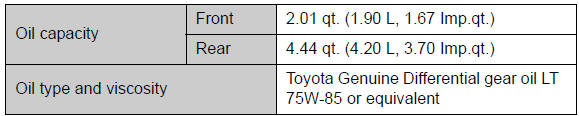

Differential

Your Toyota vehicle is filled with Toyota Genuine Differential Oil at the

Your Toyota vehicle is filled with Toyota Genuine Differential Oil at the factory.

Use Toyota approved Toyota Genuine Differential Gear Oil or an equivalent of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.

Automatic transmission

The fluid capacity is the quantity of reference. If replacement is necessary,

The fluid capacity is the quantity of reference. If replacement is necessary, contact your Toyota dealer.

NOTICE

  • Automatic transmission fluid type

Using transmission fluid other than Toyota Genuine ATF WS may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.

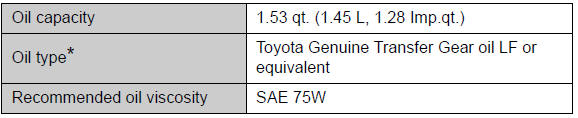

Transfer

*: Your Toyota vehicle is filled with Toyota Genuine Transfer Gear oil LF

*: Your Toyota vehicle is filled with Toyota Genuine Transfer Gear oil LF at the factory. Use Toyota approved Toyota Genuine Transfer Gear oil LF or an equivalent of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.

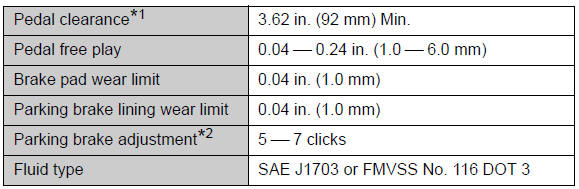

Brakes

*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running.

*2: Parking brake pedal travel when pulled with a force of 45 lbf (200 N, 20 kgf).

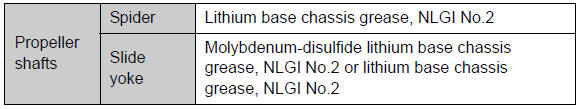

Chassis lubrication

Steering

Steering

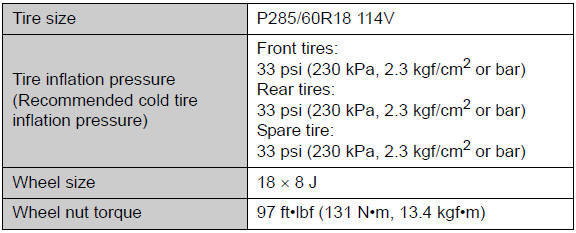

Tires and wheels

Tires and wheels

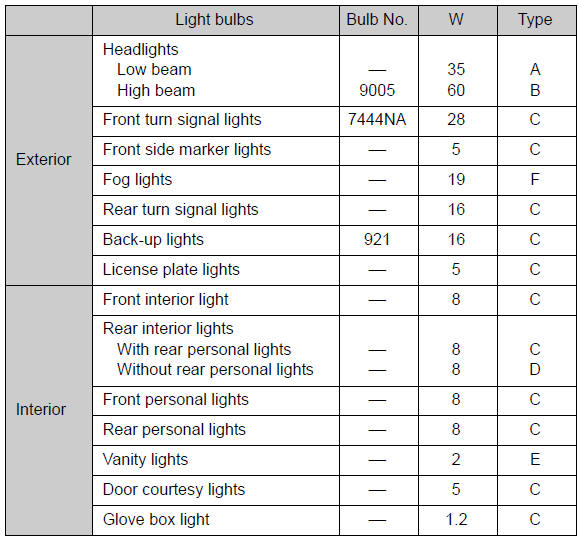

Light bulbs

Light bulbs

  1.  D4S high-intensity discharge
  2.  HB3 halogen bulbs
  3.  Wedge base bulbs
  4. Double end bulbs
  5. Single end bulbs
  6. H16 halogen bulbs
