Body Mechanical Body outside moulding
Installation

1. CLEAN BODY MOUNTING SURFACE

(a) Using a heat light, heat the body mounting surface to 40 - 60 C (104 - 140 F).

NOTICE: Do not heat the body excessively.

(b) Wipe off stains with cleaner.

2. If reusing the moulding: CLEAN MOULDING

(a) Using a heat light, heat the moulding surface to 20 - 30 C (68 - 86 F).

NOTICE: Do not heat the moulding excessively.

(b) Remove the adhesive tape from the moulding.

(c) Wipe off stains with cleaner.

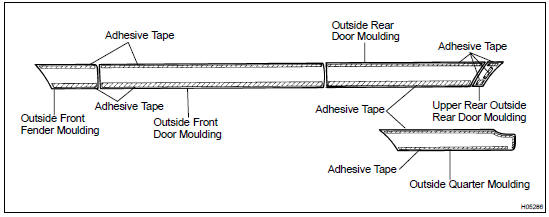

(d) Apply new adhesive tape to moulding as shown in the illustration.

3. INSTALL MOULDING

3. INSTALL MOULDING

(a) Using a heat light, heat the body and moulding.

Body: 40 - 60 C (104 - 140 F) Moulding: 20 - 30 C (68 - 86 F)

NOTICE: Do not heat the body and moulding excessively.

(b) Lift moulding release sheet from the face of moulding.

NOTICE: When the moulding release sheet is removed, make sure that no dirt of dust can get onto the uncoated area.

(c) Press firmly on the moulding. Refer to the illustration for

(c) Press firmly on the moulding. Refer to the illustration for the moulding application procedures.

NOTICE: Do not apply excessive force onto the moulding, but steady pressure with your thumbs.
