Body Electrical » Antenna
Inspection

1. Auto Antenna Models: INSPECT ANTENNA MOTOR

(a) Connect the positive (+) lead from the battery to terminal

(a) Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 6.

(b) Check that the motor turns (moves upward).

NOTICE: These tests must be done quickly (within 3 - 5 seconds) to prevent the coil from burning out.

(c) Then, reverse the polarity, check that the motor turns the

(c) Then, reverse the polarity, check that the motor turns the opposite way (moves downward).NOTICE: These tests must be done quickly (within 3 - 5 seconds) to prevent the coil from burning out.

2. INSPECT ANTENNA SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

If continuity is not as specified, replace the switch.

3. Auto Antenna Models: INSPECT ANTENNA MOTOR CONTROL RELAY CIRCUIT

Disconnect the connector from the relay and inspect the connector

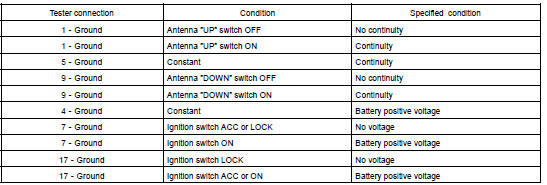

Disconnect the connector from the relay and inspect the connector on wire harness side, as shown in the chart on the next page.

If circuit is as specified, replace the relay.

If circuit is as specified, replace the relay.

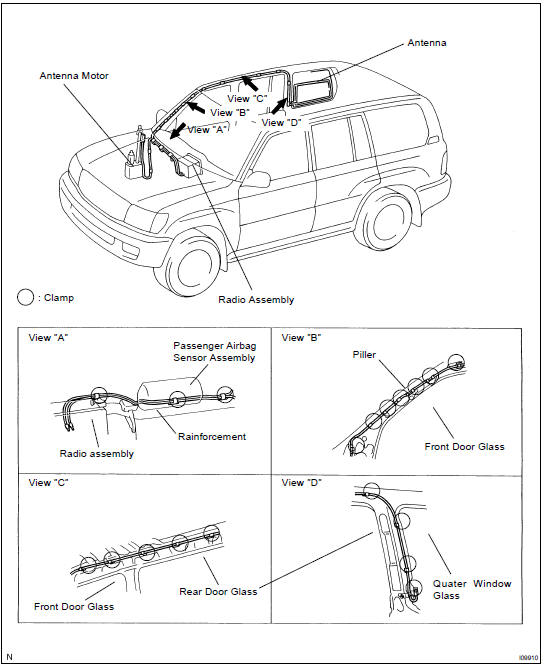

LOCATION

Replacement
