When driving » Instrument cluster
Indicators and warning lights

The indicator and warning lights on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems.

For the purpose of explanation, the following illustration displays all indicators and warning lights illuminated.

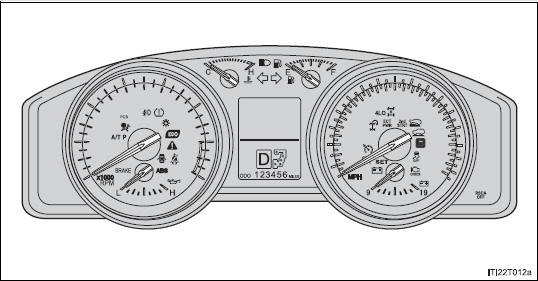

  • Instrument cluster

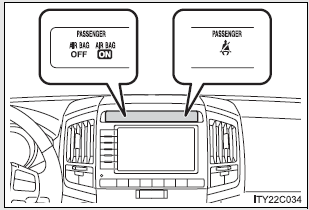

  • Center panel (vehicles with navigation system)

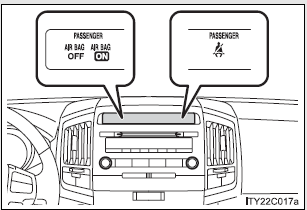

  • Center panel (vehicles without navigation system)

  • Indicators

The indicators inform the driver of the operating state of the vehicle’s various systems.

indicatorTurn signal indicator

indicatorHeadlight high beam indicator

indicator Headlight indicator

Cruise controlFog light indicator

indicatorCruise control indicator

Crawl Control Slip indicator

indicator Crawl Control indicator

“SET” indicator VSC OFF indicator

Multi-terrain “SET” indicator

Select indicator Multi-terrain Select indicator

Indicator Eco Driving Indicator Light

curtainRoll sensing of curtain shield airbags off indicator

indicator “PWR” mode indicator

transmission Automatic transmission second start indicator

four-wheel Low speed four-wheel drive indicator light

differential lock Center differential lock indicator

indicator “AIR BAG ON/OFF” indicator

cruise Dynamic radar cruise control indicator

function Turn Assist function indicator

*1: These lights turn on when the “ENGINE START STOP” switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*2: The light flashes to indicate that the system is operating.

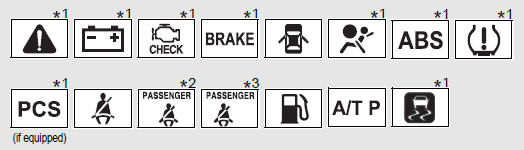

  •  Warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

*1: These lights turn on when the “ENGINE START STOP” switch is

*1: These lights turn on when the “ENGINE START STOP” switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*2: Vehicles with navigation system

*3: Vehicles without navigation system

CAUTION

  • If a safety system warning light does not come on

Should a safety system light such as Multi Terrain ABS and the SRS airbag warning lights not come on when you start the engine, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.
