When driving Operating the lights and wipers

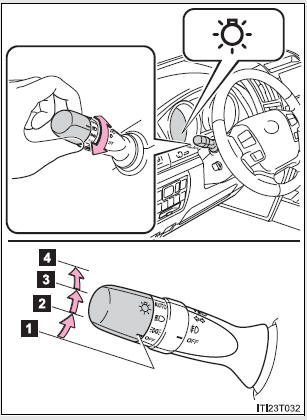

Headlight switch

The headlights can be operated manually or automatically.

  1. lights turn on. The daytime running lights turn on.
  2. parking, tail, license The side marker, parking, tail, license plate, daytime running lights and instrument panel lights turn on.
  3. all lights listed above The headlights and all lights listed above (except daytime running lights) turn on.
  4. running lights The headlights, daytime running lights and all lights listed above turn on and off automatically.

    (When the ENGINE START STOP switch is in IGNITION ON mode.)

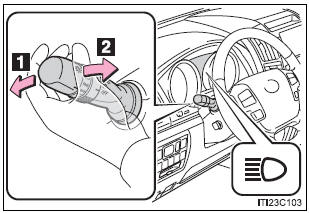

Turning on the high beam headlights

  1. With the headlights on, push the lever forward to turn on the high beams.

Pull the lever back to the center position to turn the high beams off.

  1. Pull the lever toward you to turn on the high beams.

Release the lever to turn them off.

You can flash the high beams with the headlights on or off.

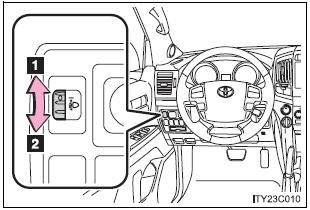

Manual headlight leveling dial

The level of the headlights can be adjusted according to the number of passengers and the loading condition of the vehicle.

  1. Raises the level of the headlights
  2. Lowers the level of the headlights

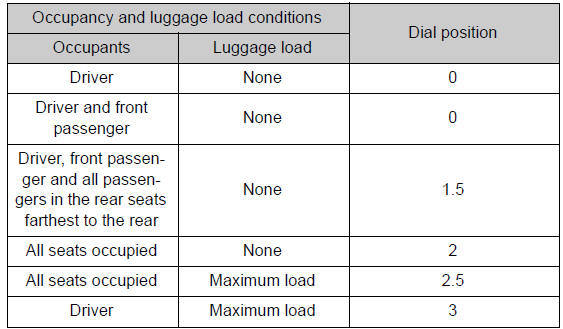

  • Guide to dial settings

  • Daytime running light system

  • To make your vehicle more visible to other drivers, the headlights turn on automatically (at a reduced intensity) whenever the engine is started and the parking brake is released. Daytime running lights are not designed for use at night.
  • Compared to turning on the headlights, the daytime running light system offers greater durability and consumes less electricity, so it can help improve fuel economy.
  • Headlight control sensor

The sensor may not function properly if

The sensor may not function properly if an object is placed on the sensor, or anything that blocks the sensor is affixed to the windshield.

Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight system to malfunction.

  • Automatic light off system

  • When the headlights are on: The headlights and tail lights turn off 30 seconds after a door is opened and closed if the ENGINE START STOP switch has been switched to ACCESSORY or OFF mode.
  • When only the tail lights are on: The tail lights turn off automatically if the ENGINE START STOP switch is switched to ACCESSORY or OFF mode and drivers door is opened.

To turn the lights on again, turn the ENGINE START STOP switch to IGNITION ON mode, or turn the light switch off once and then back to the or  position. or position.

  • Customization

Settings (e.g. light sensor sensitivity) can be changed.

(Customizable features )

NOTICE

  • To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not running.
