Before driving Ľ Safety information
Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the devices for front passenger.

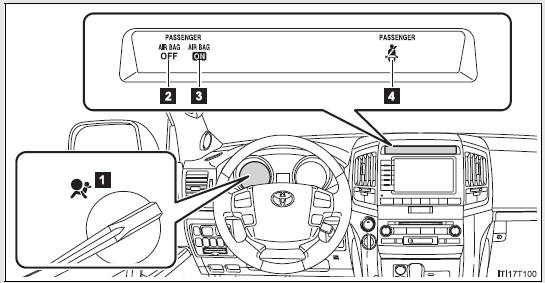

  1. SRS warning light
  2. AIR BAG OFF indicator light
  3. AIR BAG ON indicator light
  4. Front passengerís seat belt reminder light

Condition and operation in the front passenger occupant classification system

  • Adult*1

Indicator/ warning light AIR BAG ON and AIR BAG OFF indicator lights ďAIR BAG ONĒ
SRS warning light Off
Front passengerís seat belt reminder light Flashing*2
Devices Front passenger airbag and knee airbag Activated
Side airbag in the front passenger seat
Curtain shield airbag on the front passenger side
Front passengerís seat belt preten
  • Child*3 or child restraint system*4

Indicator/ warning light AIR BAG ON and AIR BAG OFF indicator lights ďAIR BAG OFFĒ*5
SRS warning light Off
Front passengerís seat belt reminder light Flashing*2
Devices Front passenger airbag and knee airbag Deactivated
Side airbag in the front passenger seat Activated
Curtain shield airbag on the front passenger
Front passengerís seat belt prete
  • Unoccupied

Indicator/ warning light AIR BAG ON and AIR BAG OFF indicator lights Not illuminated
SRS warning light Off
Front passengerís seat belt reminder light
Devices Front passenger airbag and knee airbag Deactivated
Side airbag in the front passenger seat Activated
Curtain shield airbag on the front passenger side
Front passengerís seat belt pret Deactivated
  • System malfunction

Indicator/ warning light AIR BAG ON and AIR BAG OFF indicator lights ďAIR BAG OFFĒ
SRS warning light On
Front passengerís seat belt reminder light Off
Devices Front passenger airbag and knee airbag Deactivated
  Side airbag in the front passenger seat Activated
  Curtain shield airbag on the front passenger side
  Front passengerís seat belt pretensioner

*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.

*2: In the event the front passenger does not wear a seat belt.

*3: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her physique or posture.

*4: Never install a rear-facing child restraint system on the front passenger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable.

*5: In case the indicator is not illuminated, consult this manual as for installing the child restraint system properly.

CAUTION

  • Front passenger occupant classification system precautions

Observe the following precautions regarding front passenger occupant classification system.

Failure to do so may cause death or serious injury.

  • Wear the seat belt properly.
  • Make sure the front passengerís seat belt tab has not been left inserted into the buckle before someone sits in the front passenger seat.
  • Make sure the AIR BAG OFF indicator light is not illuminated when using the seat belt extender for the front passenger seat. If the AIR BAG OFF indicator light is illuminated, disconnect the extender tongue from the seat belt buckle, then reconnect the seat belt. Reconnect the seat belt extender after making sure the AIR BAG ON indicator light is illuminated. If you use the seat belt extender while the AIR BAG OFF indicator light is illuminated, the SRS airbags for the passenger may not activate correctly, which could cause death or serious injury in the event of collision.
  • Do not apply a heavy load to the front passenger seat.
  • Do not put weight on the front passenger seat by putting your hands or feet on the front passenger seat seatback from the second seat.
  • Do not let a second seat passenger lift the front passenger seat with their feet or press on the seatback with their legs.
  • Do not put objects under the front passenger seat.
  • Do not recline the front passenger seatback so far that it touches a second seat. This may cause the AIR BAG OFF indicator light to be illuminated, which indicates that the passengerís airbags will not deploy in the event of a severe accident. If the seatback touches the second seat, return the seatback to a position where it does not touch the second seat. Keep the front passenger seatback as upright as possible when the vehicle is moving.

    Reclining the seatback excessively may lessen the effectiveness of the seat belt system.



CAUTION

  • Front passenger occupant classification system precautions

  • If an adult sits in the front passenger seat, the AIR BAG ON indicator light is illuminated. If the AIR BAG OFF indicator is illuminated, ask the passenger to sit up straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If the AIR BAG OFF indicator still remain illuminated, either ask the passenger to move to the second seat, or if that is not possible, move the front passenger seat fully rearward.
  • When it is unavoidable to install the forward-facing child restraint system on the front passenger seat, install the child restraint system on the front passenger seat in the proper order.
  • Do not modify or remove the front seat.
  • Do not kick the front passenger seat or subject it to severe impact. Otherwise, the SRS warning light may come on to indicate a malfunction in the detection system. In this case, contact your Toyota dealer immediately.
  • Do not use a seat accessory, such as a cushion or seat cover, that covers the seat cushion surface.
  • Child restraint systems installed on the second seat should not contact the front seatbacks.
