Vehicle specifications
Customization

Your vehicle includes a variety of electronic features that can be personalized to your preferences.

Programming of these preferences can be performed by your Toyota dealer.

For vehicles with the navigation system, it is also possible to customize certain vehicle features yourself using the touch screen.

Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details.

Customizing vehicle features using the touch screen (vehicles with navigation system)

STEP 1

Press SETUP.

STEP 2

Touch Vehicle on the Setup screen.

STEP 3

Touch Vehicle Customization.

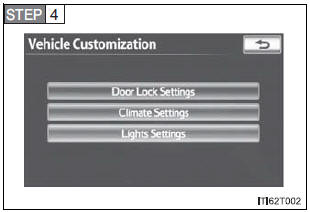

Touch the setting to be changed.

Touch the setting to be changed.

Change each setting and touch Save.

If Save is not touched before switching to another screen, any changes will be lost.

STEP 5

A message indicating that the settings are being saved will appear.

Do not perform any other operations while this message is displayed.

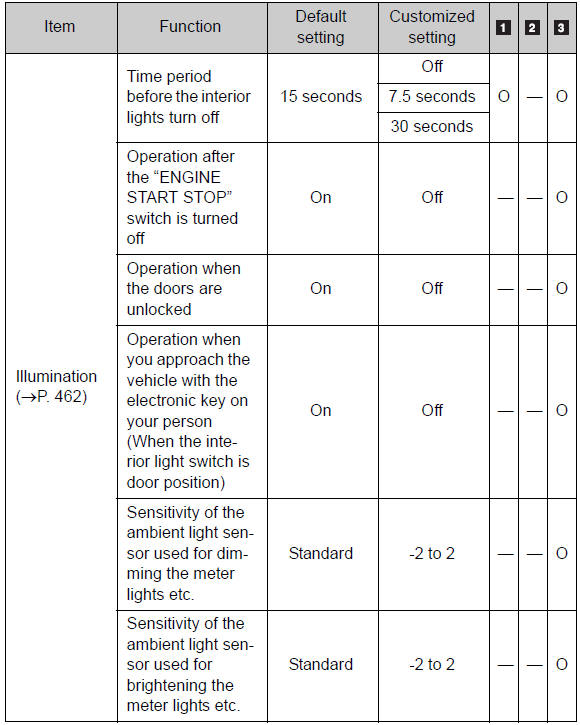

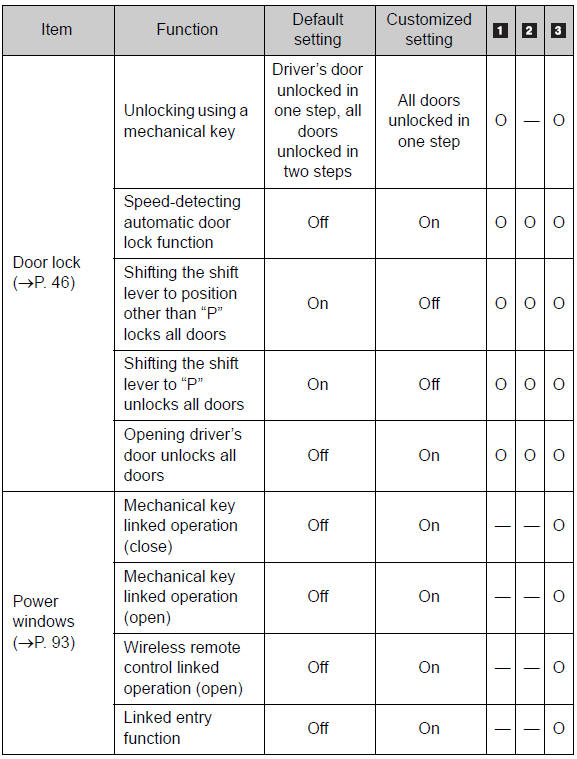

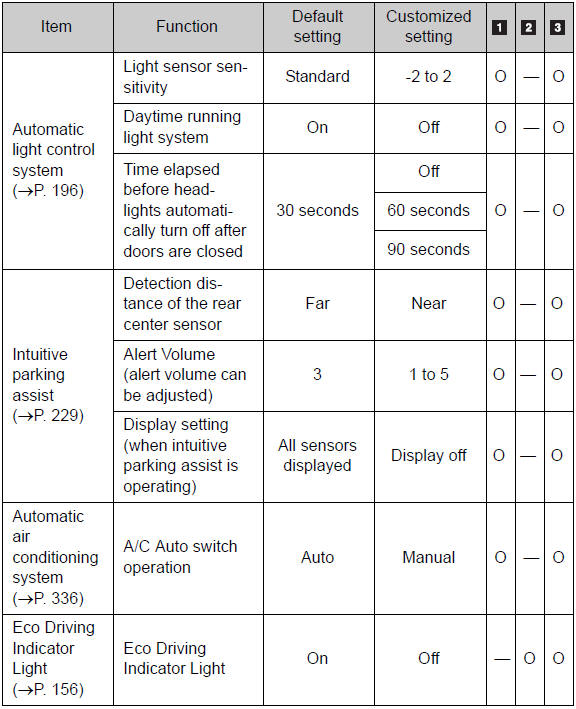

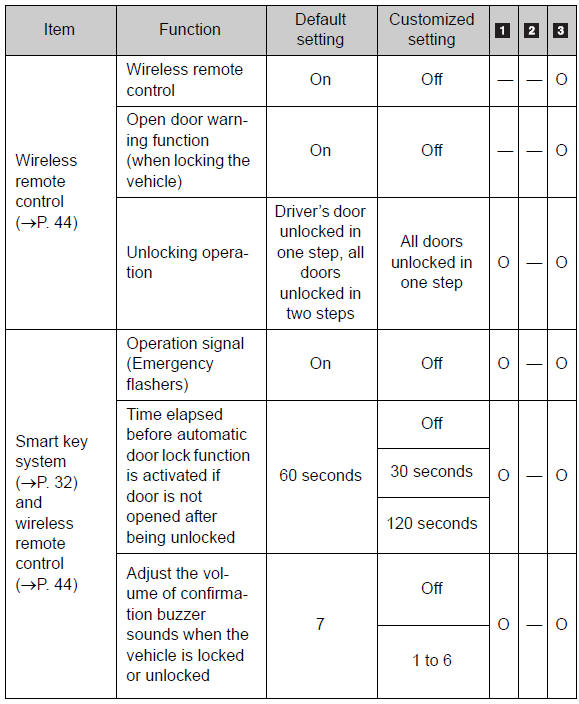

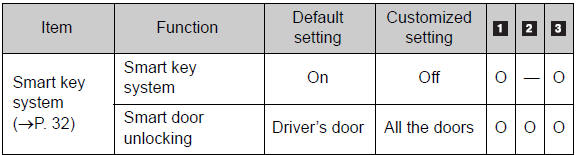

Customizable features

Vehicle customization settings can be changed at your Toyota dealer.

For vehicles with the navigation system, some settings can be changed using the touch screen.

  1. Settings that can be changed using the touch screen
  2. Settings that can be changed using the vehicle switches
  3. Settings that can be changed by your Toyota dealer

Definition of symbols: O= Available, = Not available

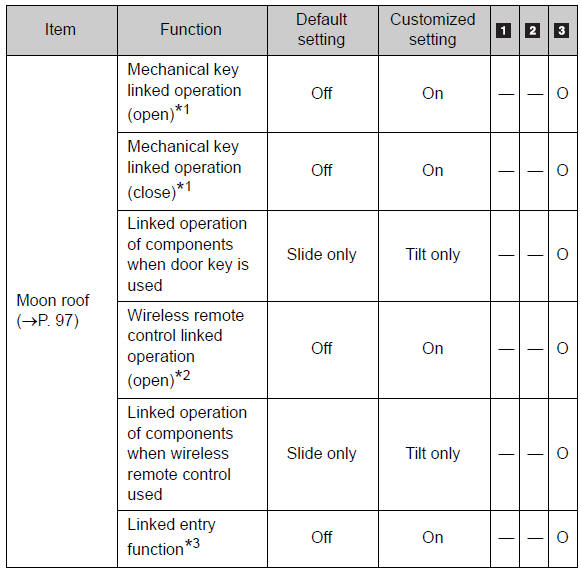

*1: The settings can be changed when the mechanical key linked operation of

*1: The settings can be changed when the mechanical key linked operation of the power window is set to ON.

*2: The settings can be changed when the wireless remote control linked operation of the power window is set to ON.

*3: The settings can be changed when the entry function linked operation of the power window is set to ON.

  • Vehicle customization

  • If the smart key system is turned OFF, unlock door cannot be selected.
  • If the doors are not opened after unlocking and are then automatically relocked, a signal will be given if Operation signal (Emergency flashers) or Operation signal (Buzzer) are set to ON.
  • When setting using the vehicle switches (vehicles with navigation system)

When using the vehicle switches to set an item that can also be set using the touch screen, the item displayed on the touch screen will not change immediately.

If the ENGINE START STOP switch is first turned to OFF, the screen display will change once the ENGINE START STOP switch is turned to IGNITION ON mode again.

  • When customizing using the touch screen (vehicles with navigation system)

Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also, to prevent battery discharge, leave the engine running while customizing the features.

CAUTION

  • During customization

As the engine needs to be running during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.



NOTICE

  • During customization

To prevent battery discharge, ensure that the engine is running while customizing features.

Multi-information display

Available languages

English (U.S.A.), Spanish
