Air conditioning
Air outlet servomotor

INSPECTION

1. REMOVE LOWER NO. 1 PANEL (BO-84 )

2. REMOVE AIR OUTLET SERVOMOTOR

2. REMOVE AIR OUTLET SERVOMOTOR

(a) Disconnect the connector.

(b) Remove the 3 screws and the air outlet servomotor.

3. INSPECT AIR OUTLET SERVOMOTOR OPERATION

(a) Connect the positive (+) lead from the battery to terminal

(a) Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 7.

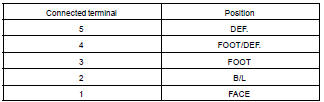

(b) Connect the negative (-) lead from the battery to each terminal and check that the shaft rotates at each position, as shown in the illustration.

If operation is not as specified, replace the servomotor.

If operation is not as specified, replace the servomotor.

4. INSTALL AIR OUTLET SERVOMOTOR

(a) Install the air outlet servomotor with the 3 screws.

(b) Connect the connector.
