Body Mechanical Sliding roof
Adjustment

1. REMOVE SIDE GARNISH

Before making adjustment, using a screwdriver, remove the

Before making adjustment, using a screwdriver, remove the side garnishes.

HINT:

  • Tape the screwdriver tip before use.
  • After adjustment, reinstall the side garnishes.

2. ADJUST SLIDING ROOF GLASS IN FORWARD/REARWARD AND LEFT/RIGHT DIRECTIONS

(a) Loosen the sliding roof glass installation nuts.

(a) Loosen the sliding roof glass installation nuts.

(b) Adjust the sliding roof glass forward/rearward or left/right.

3. ADJUST SLIDING ROOF GLASS IN UPWARD OR DOWNWARD DIRECTIONS

(a) Loosen the screws shown in the illustration.

(a) Loosen the screws shown in the illustration.

(b) Adjust the sliding roof glass upward or downward.

4. ADJUST SLIDING ROOF GLASS IN CLEARANCE (Difference in left and right clearance)

(a) When the front or rear alignment is not correct, remove

(a) When the front or rear alignment is not correct, remove the drive gear and sliding roof glass, then adjust the drive cables.

NOTICE: Remove the drive gear with the sliding roof fully closed.

(b) Adjust by sliding the cables forward or rearward to align

(b) Adjust by sliding the cables forward or rearward to align the 2 marks as shown.

(c) Install the drive gear and sliding roof glass.

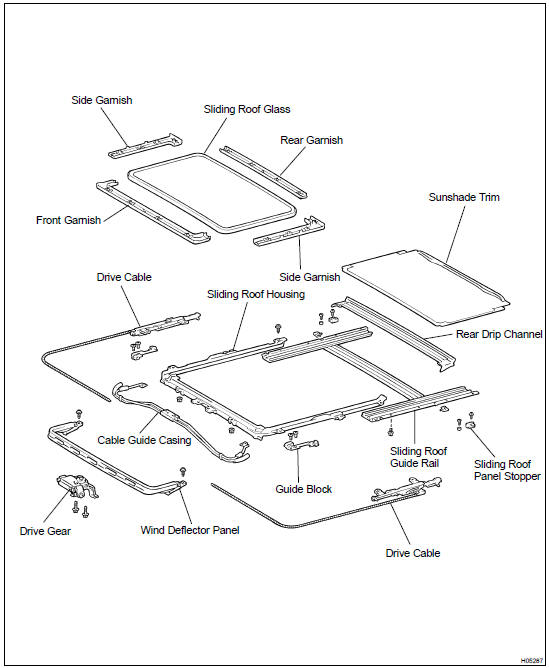

COMPONENTS
