Body Mechanical Rear door
Adjustment

1. ADJUST DOOR IN FORWARD/BACKWARD AND VERTICAL DIRECTIONS

(a) Remove the front door scuff plate.

(b) Remove the rear door scuff plate.

(c) Remove the front door opening trim.

(d) Remove the rear door opening trim.

(e) Remove the center pillar lower garnish.

(f) Loosen the body side hinge nuts to adjust.

(f) Loosen the body side hinge nuts to adjust.

Torque: 23 N·m (235 kgf·cm, 17 ft·lbf)

(g) Install the removed parts.

2. ADJUST DOOR IN RIGHT/LEFT AND VERTICAL DIRECTIONS

Loosen the door side hinge bolts to adjust.

Loosen the door side hinge bolts to adjust.

Torque: 26 N·m (265 kgf·cm, 19 ft·lbf)

3. ADJUST DOOR LOCK STRIKER

(a) Check that the door fit and door lock linkages are adjusted

(a) Check that the door fit and door lock linkages are adjusted correctly.

(b) Loosen the striker mounting screws to adjust.

Torque: 11 N·m (115 kgf·cm, 8 ft·lbf)

(c) Using a plastic hammer, tap the striker to adjust it.

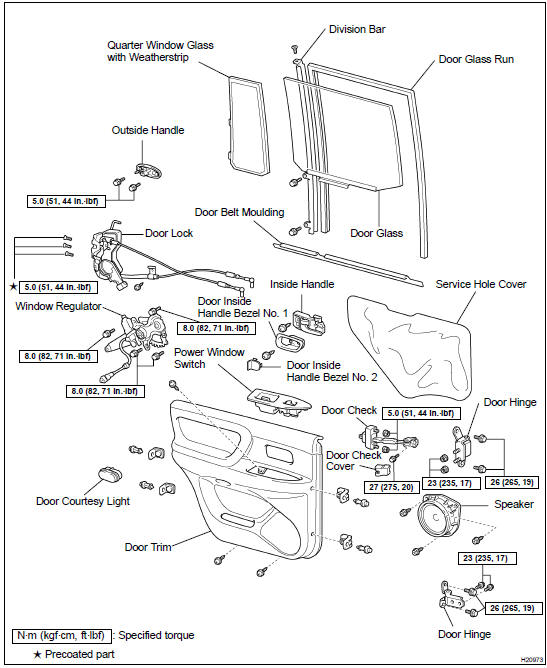

COMPONENTS

Disassembly
