Body Mechanical Lower back door
Adjustment

1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS

Loosen the door side hinge bolts to adjust.

Loosen the door side hinge bolts to adjust.

Torque: 28 N·m (286 kgf·cm, 21 ft·lbf)

2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS

Loosen the body side hinge bolts and nut to adjust.

Loosen the body side hinge bolts and nut to adjust.

Torque: 31 N·m (316 kgf·cm, 23 ft·lbf)

3. ADJUST DOOR LOCK STRIKER

(a) Check that the door fit and door linkages are adjusted correctly.

(a) Check that the door fit and door linkages are adjusted correctly.

(b) Using a torx wrench, loosen the door lock striker mounting screws.

Torx wrench: T40 (Part No. 09042-00020 or locally manufactured tool)

Torque: 11.5 N·m (117 kgf·cm, 8 ft·lbf)

(c) Using a plastic hammer, tap the striker to adjust it.

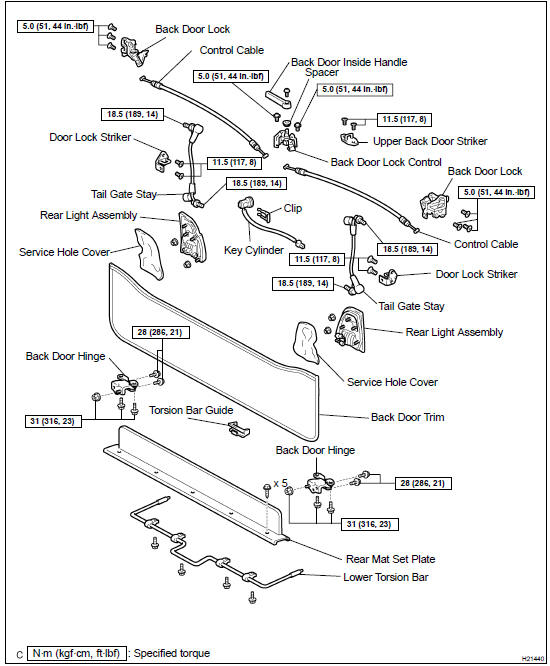

COMPONENTS

Disassembly
